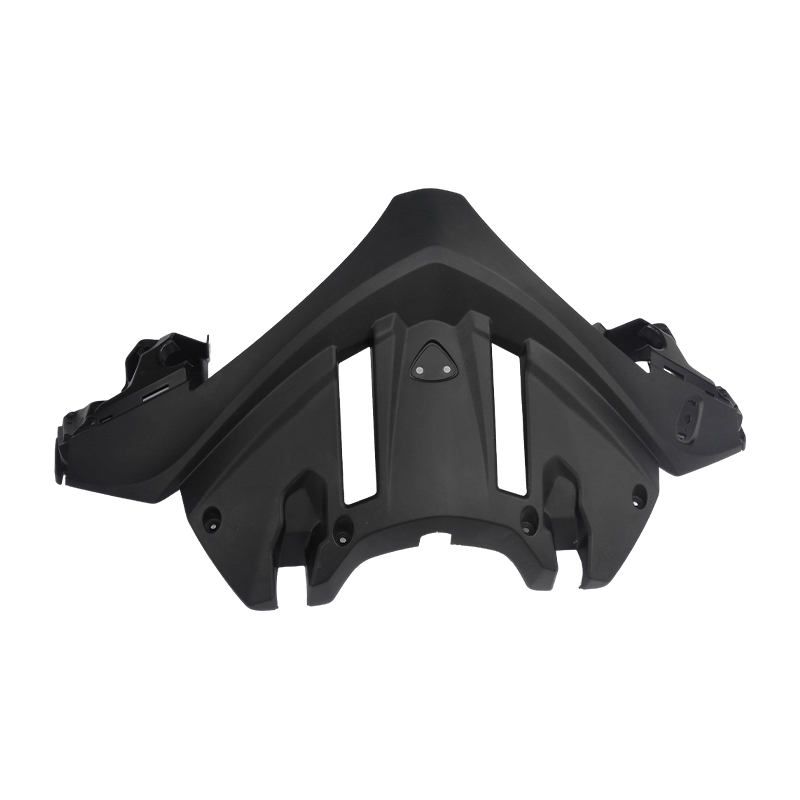

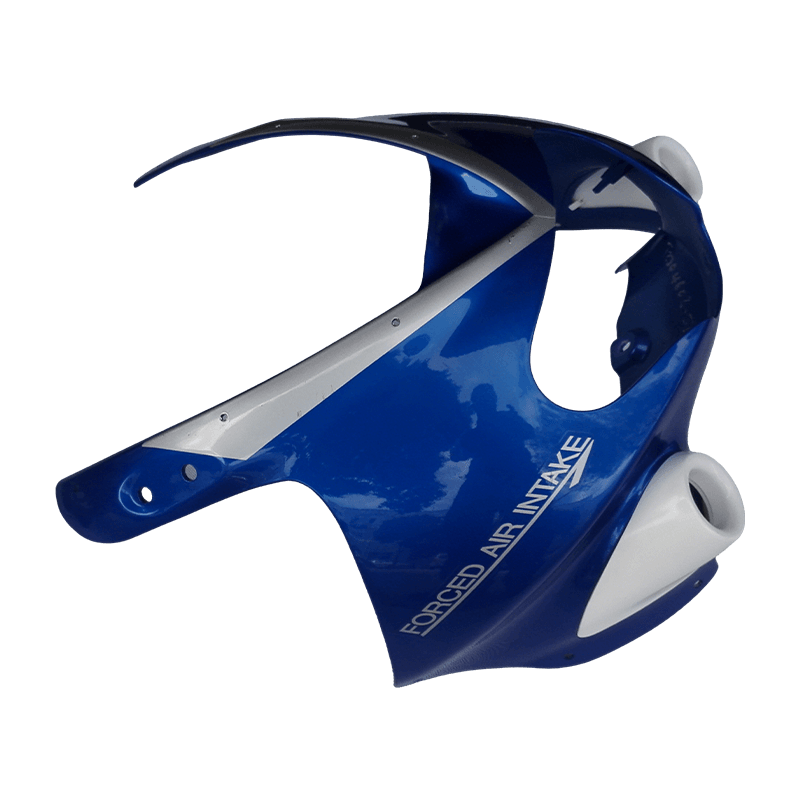

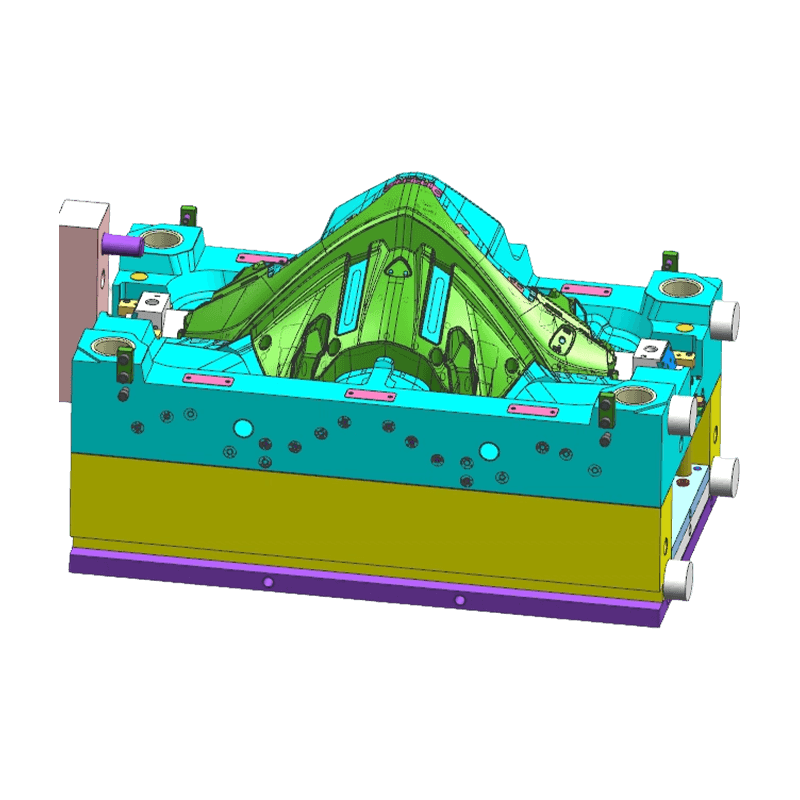

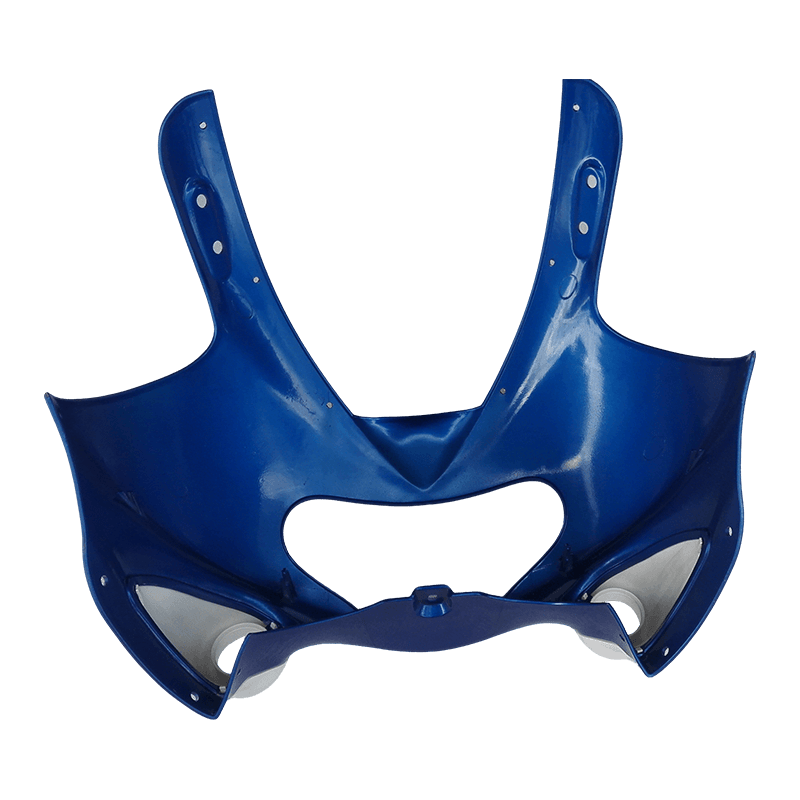

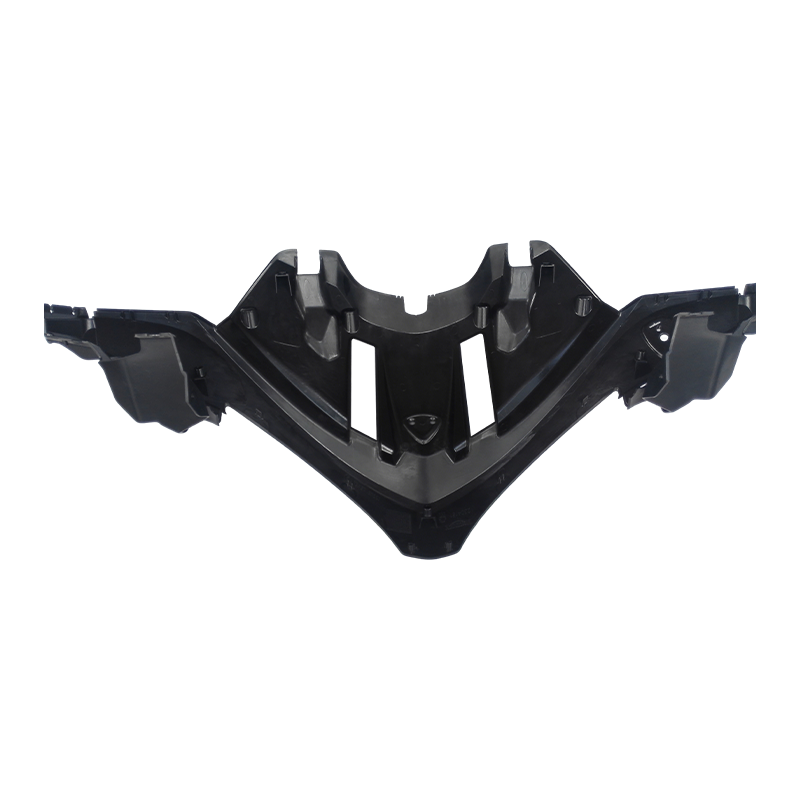

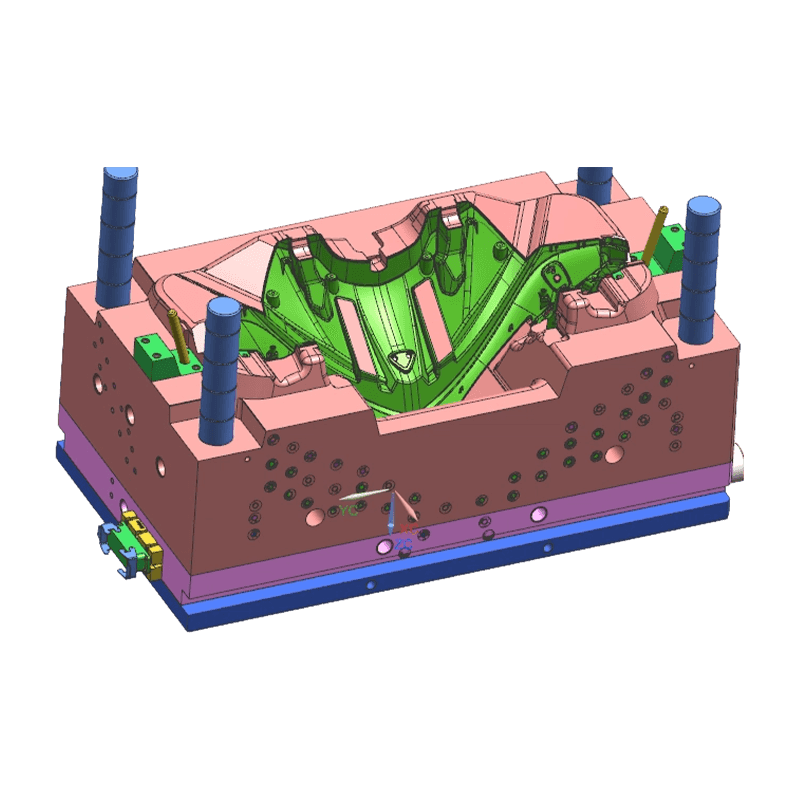

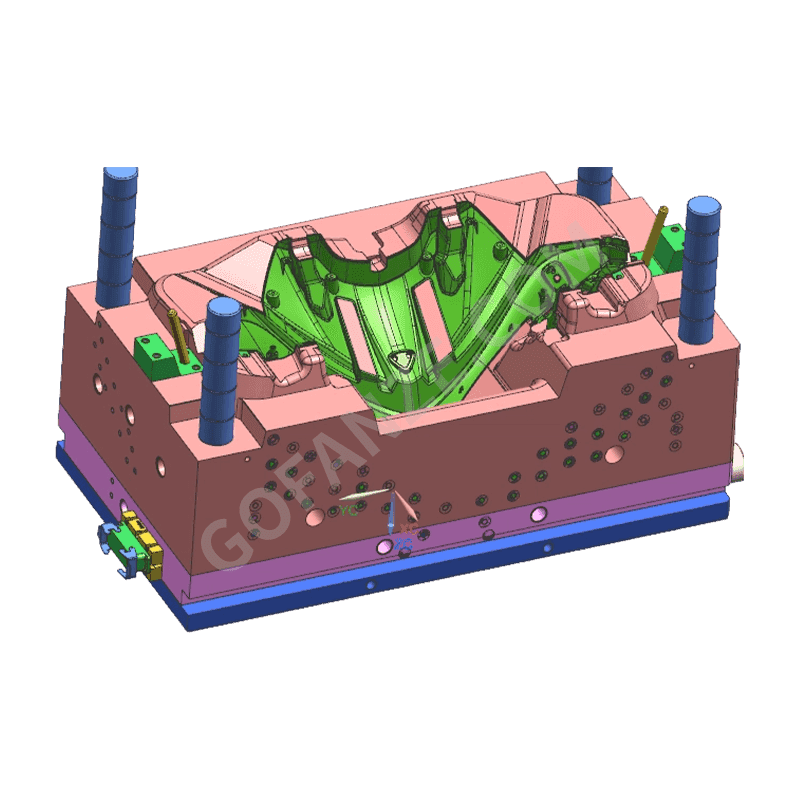

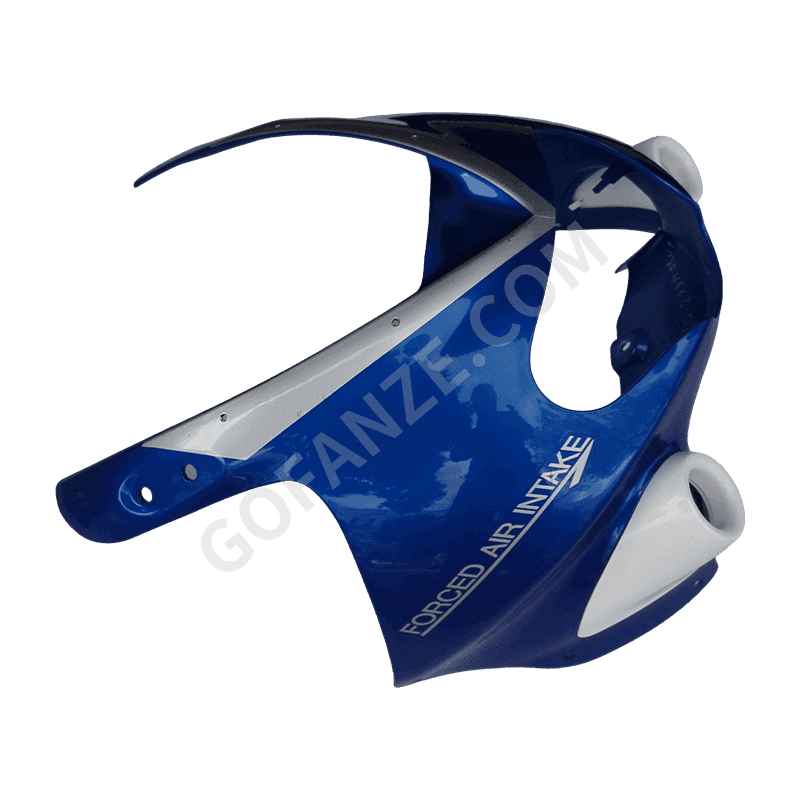

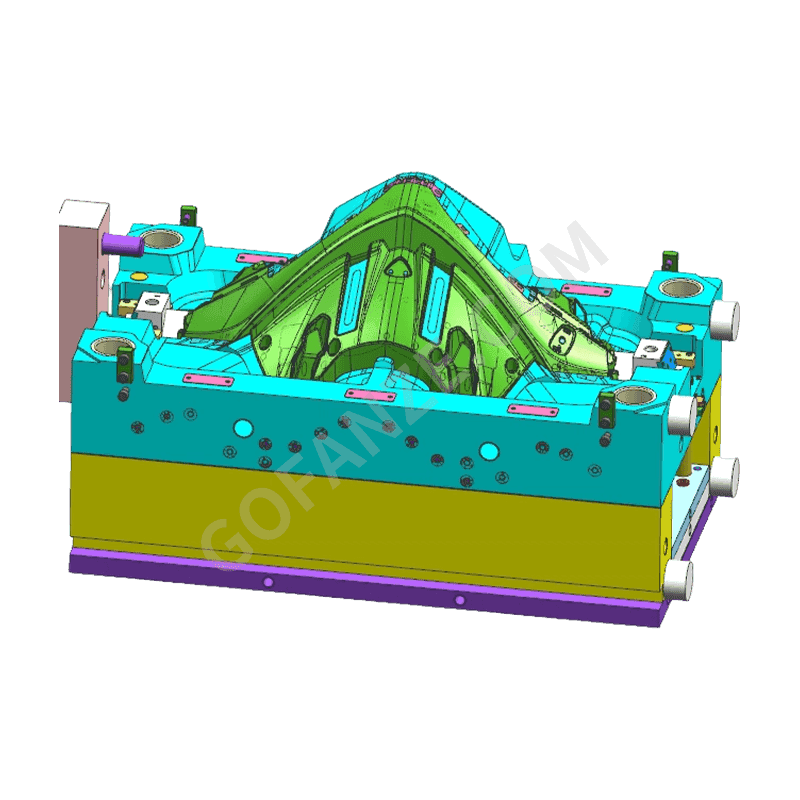

Motorcycle Front Fairing Injection Mold

Core Advantages

• Large Complex Surface Molding Capability: Skilled in handling large dimensions, deep cavities, and two-shot/multishot requirements. Precision parting line design ensures smooth, flush-fitting exterior lines.
• Class A Surface Quality Assurance: Mold cavities undergo high polishing or fine texturing to achieve mirrorlike gloss or uniform graining, meeting the appearance requirements of motorcycle front fairings.
• ThinWall Structure Control: Gate layout and weld line positions are optimized via mold flow analysis to achieve lightweight, thin-wall designs while maintaining rigidity, reducing material consumption, and cycle time.
• Mold Rigidity Design: High-strength mold bases and thickened plates are utilized for large molds, combined with multipoint clamping systems, to minimize deflection under high injection pressure, ensuring part dimensional stability.

Product Features

• Precision Parting Line Design: Parting line fit accuracy is controlled within 0.02mm to prevent flash during clamping, ensuring smooth, natural exterior lines.
• Integrated Mechanism Design: The mold integrates sliders, lifters, and hydraulic corepulling units to form complex features like side mounting holes, snapfits, and vent grilles.
• Temperature Control System: Efficient conformal cooling channels are designed to ensure uniform cooling across large parts, reducing warpage and internal stress.
• Optimized Venting System: Precision venting grooves are placed at last fill areas and along parting lines to prevent burning or short shots caused by gas entrapment.
• Wear Resistance & Lifespan Design: Critical moving parts and high-wear areas utilize wear-resistant steel with nitriding or coating treatments to ensure stability during long-term mass production.

Applications

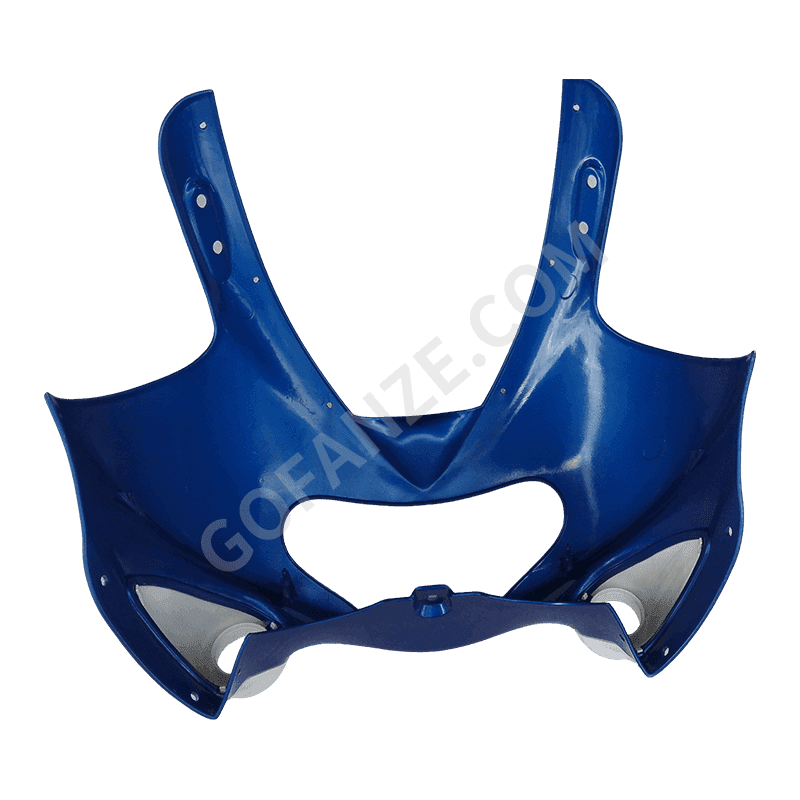

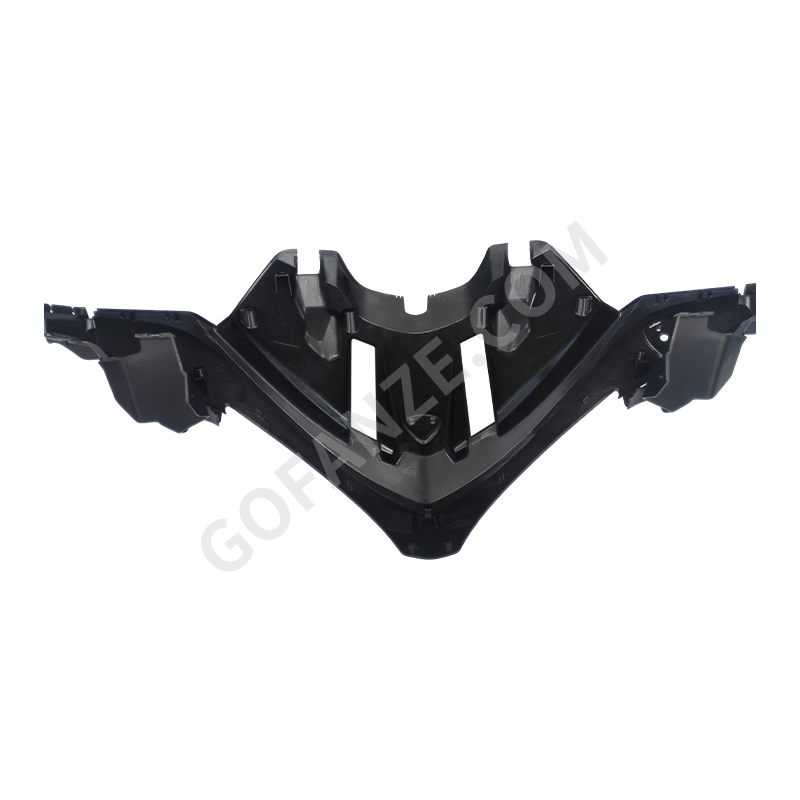

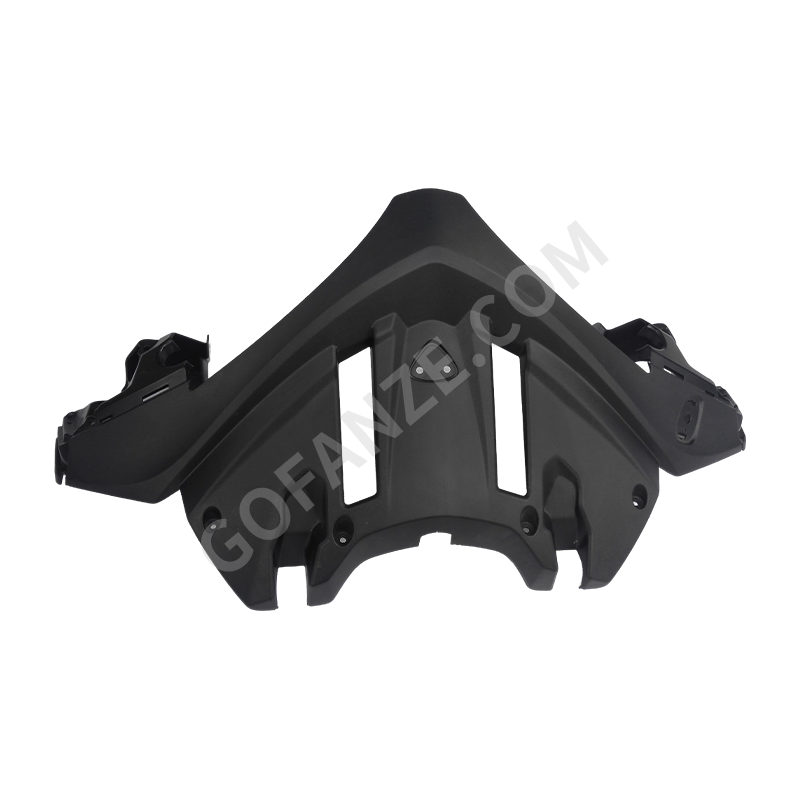

This mold is primarily used in motorcycle manufacturing to produce front fairing covers for various gasoline-powered and electric motorcycles. It is applicable for street bikes, sport bikes, cruisers, and scooters, supplied to motorcycle OEMs and Tier 1 suppliers.

Common Issues & Solutions

• Issue: Warpage in large thin-wall parts.
  Solution: Optimize gate location and quantity via mold flow analysis; design conformal cooling for uniform temperature; preset counterdeformation compensation in mold design.
• Issue: Visible weld lines on the appearance surface.
  Solution: Optimize gate layout to move weld lines to nonappearance areas; increase mold temperature or use sequential valve gating; place vents at weld line locations.
• Issue: Drag marks or ejector pin marks on the appearance surface during ejection.
  Solution: Optimize draft angles; polish or coat deep cavity surfaces; optimize ejector system layout and increase ejection area.

Important Considerations

• Provide complete 3D data of the motorcycle front fairing and Class A surface requirements before mold design, clearly defining the parting line position and appearance areas.
• Specify the plastic material grade and additives (e.g., UV stabilizers, glass fiber content) accurately for shrinkage setting and steel selection evaluation.
• During transportation and storage of large molds, use dedicated support stands to prevent uneven force on mold feet, which could cause plate deformation.
• Regularly inspect the temperature control system of the hot runner and the sealing of hydraulic/pneumatic corepulling units to ensure proper functionality.
