Wheel Speed Sensor Wiring Harness Injection Mold

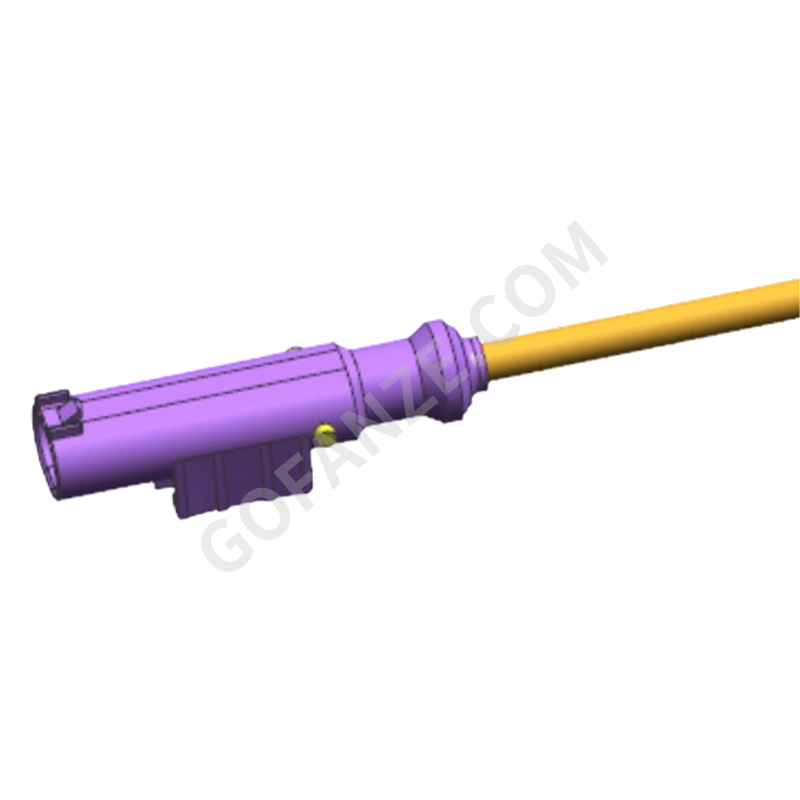

This product is a wiring harness assembly designed for Automotive Antilock Braking Systems (ABS) and Electronic Stability Control (ESC) systems. It is responsible for accurately transmitting signals from the wheel speed sensor to the Electronic Control Unit (ECU), acting as a critical connection component for vehicle active safety systems. The assembly consists of weatherresistant wires, signal shielding layers, sealing gaskets, and connector terminals. The connector housings are manufactured via injection molding to ensure secure mating with sensor and ECU ports. With over 15 years of export experience, we meet the stringent requirements of European and Asian OEMs regarding electrical performance, mechanical strength, and environmental aging resistance.

Fanze T&M (Jiashan) Co., Ltd. Fanze T&M (Jiashan) Co., Ltd. Contact Us
PREV：Automobile ABS Wiring Harness Injection Mold NEXT：No next article
  • Product Details
Precision Mold Series
Wheel Speed Sensor Wiring Harness Injection Mold
Pricing Contact us for a quote Go to contact page
Dimensions 15 x 57 x 16 mm
Material PA66 GF25
Mold Steel 1.2344
Inspection CMM
Lifespan 500,000 shots
Warranty 12 months
Built for Sensor Harness Protection

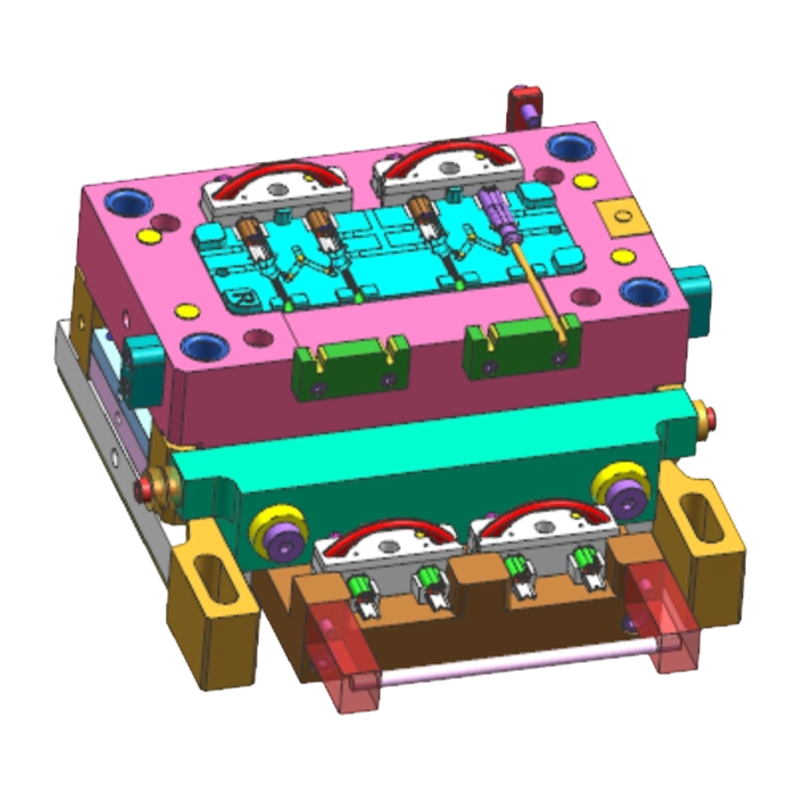

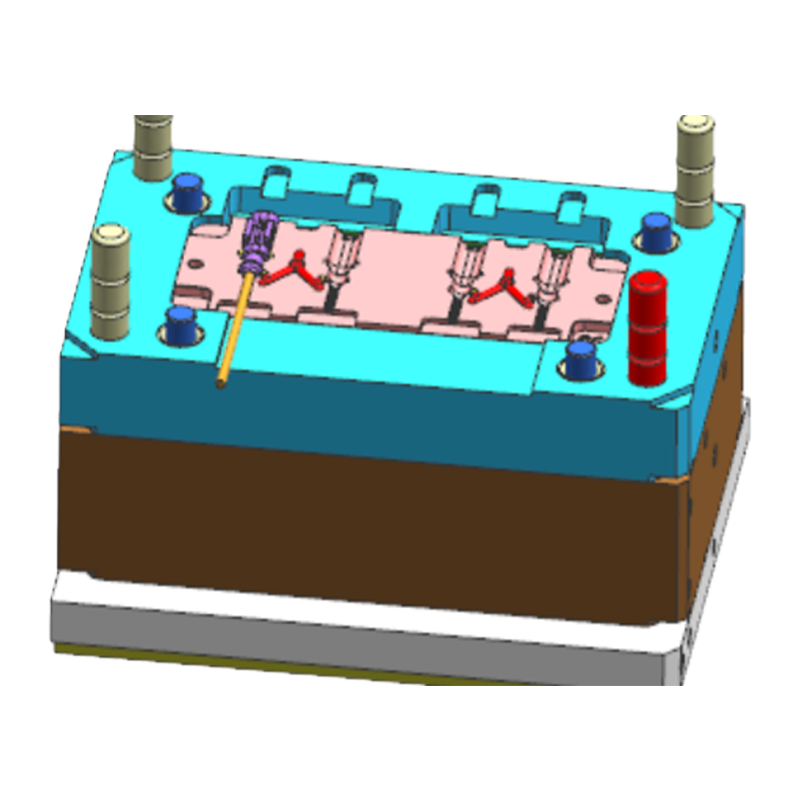

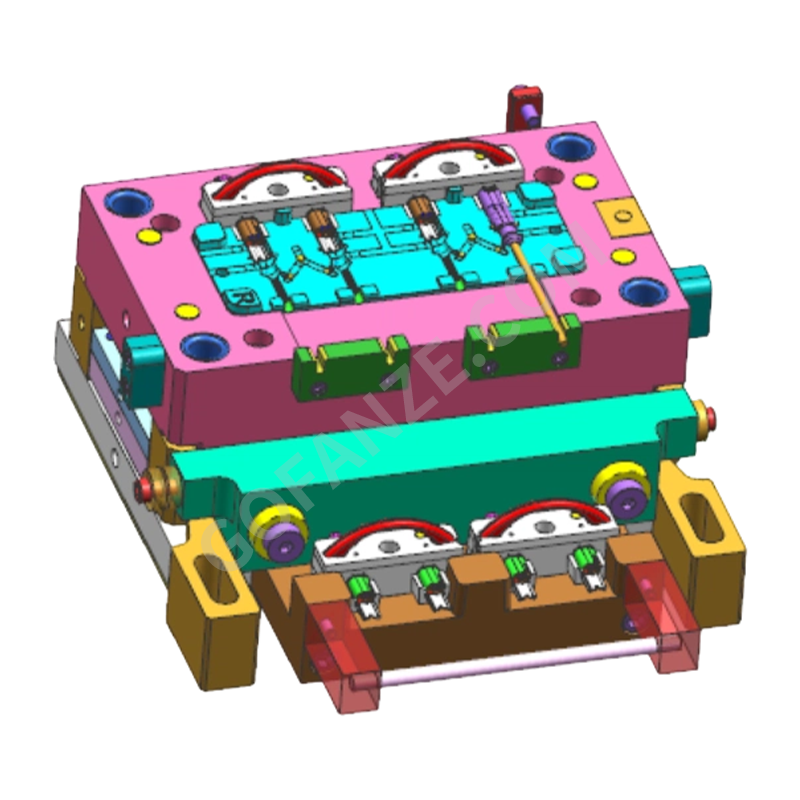

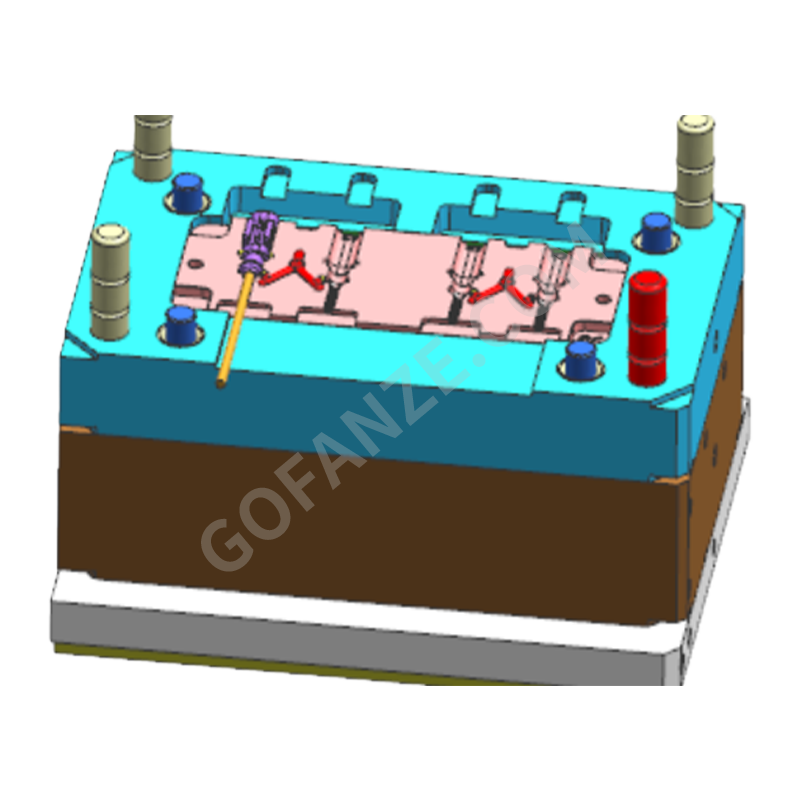

This mold is developed for the serial production of wheel speed sensor wiring harness housings that operate in exposed underbody environments. Machined from 1.2344 hot work steel and inspected by CMM, the tool is configured to process PA66 GF25 with glass fiber reinforcement, delivering dimensionally stable, abrasion-resistant connector bodies. Each cavity layout and cooling circuit is designed around the compact harness geometry, supporting repeatable molding across a 500,000-shot service life with a 12-month warranty. The tooling is fully customizable to match OEM connector standards, making it a practical option for Tier suppliers seeking a dedicated B2B mold solution.
Core Advantages
1
Glass Fiber Process Control
Mold flow and cooling design account for PA66 GF25 flow behavior, reducing fiber orientation distortion and wear on gate areas.
2
Compact Geometry Accuracy
CMM-verified cavity machining maintains tight tolerances on the small harness footprint, ensuring stable connector fit in assembly.
3
Underbody Durability Focus
Steel selection and surface treatment are chosen to withstand the abrasive nature of glass-filled resin over long production cycles.
Product Features
Wear-Resistant Gate Design
Gate inserts are specified for glass-filled PA66 to limit erosion and maintain consistent cavity fill throughout the mold lifespan.
Harness Routing Conformity
Cavity layout is engineered around the sensor harness path, preserving clip positions and cable channel geometry in each shot.
Moisture and Chemical Tolerance
Mold surfaces are finished to support PA66 parts that resist underbody moisture, road salt, and temperature cycling in service.
Custom Connector Variants
Tooling can be configured for different connector pin counts and housing profiles based on customer drawings or 3D data.
Application Scenarios
Wheel speed sensor harness housings for passenger vehicles
ABS and ESC sensor connector bodies for commercial vehicles
Underbody wiring harness protection components for new energy vehicles
Replacement tooling for Tier 1 sensor and harness suppliers
FAQs and Solutions
Q1: How does the mold handle glass fiber wear in PA66 GF25? +
Gate and runner areas are fitted with wear-resistant inserts, and steel selection is matched to the abrasive glass-filled resin. This approach limits erosion and keeps cavity dimensions stable across the 500,000-shot production window.
Q2: Can the harness housing design be adapted to different vehicle platforms? +
Yes. The tooling is built from customer 2D drawings or 3D models, allowing connector profile, clip locations, and cable channel geometry to be adjusted for each platform while keeping the same mold base architecture where possible.
Q3: What are the lead times and commercial terms for this mold? +
Mold manufacturing takes about 50 days, with product delivery around 30 days after tool approval. Terms are FOB Shanghai with T/T payment, and pricing is quoted on request based on final specification.
Shipping FOB Shanghai
Payment T/T
Customization Fully available
Product Dimensions 15x57x16
Product Material PA66 GF25
Product Price US$2.0
Product Delivery Time 30 days
Mold Price US$20,000
Mold Manufacturing Time 50 days
Shipping Terms FOB ShangHai
Payment Terms T/T
Mold Material 1.2344
Testing Methods CMM
Mold Lifespan 500k
Warranty Period 12 month
