Automobile ABS Wiring Harness Injection Mold

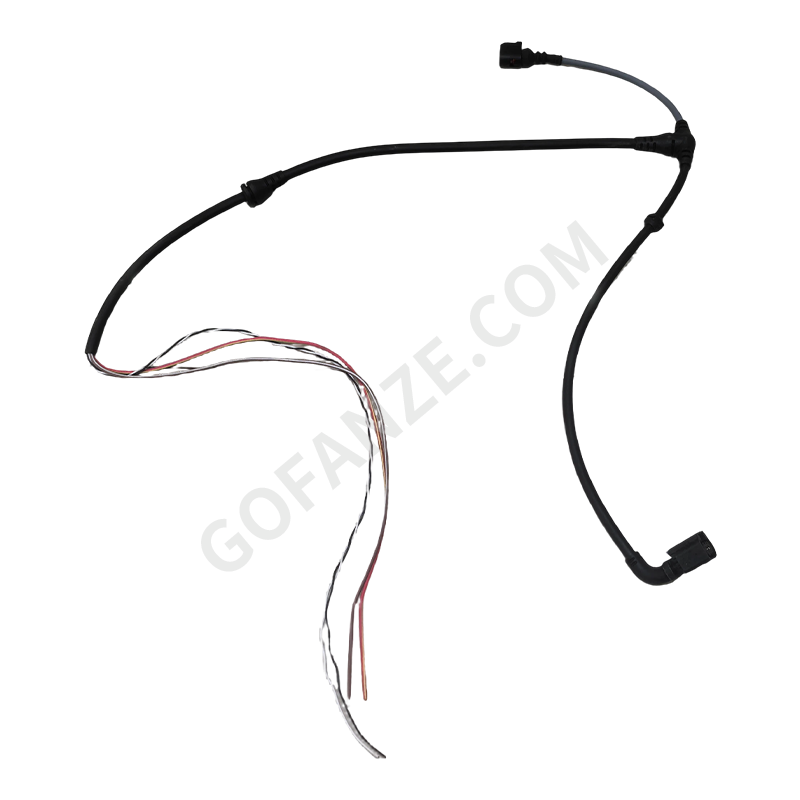

This product primarily refers to the precision plastic components within the automotive ABS (Antilock Braking System) wiring harness system, including sensor connector housings, wire harness fixing brackets, and connector insulators. Manufactured using injection molding processes, these components serve the main functions of wire bundling, insulation protection, and physical fixation within the harness. The materials typically selected are engineering plastics such as PBT, PA66, or PP, with mold designs optimized for the temperature resistance and mechanical strength requirements of the harness. As critical protective elements of the wiring system, their dimensional accuracy directly impacts the connection stability between the harness and the ABS pump or wheel speed sensors. We offer a onestop service from connector mold development to injection production, as well as harness component welding and assembly, complying with automotive electrical component standards.

Fanze T&M (Jiashan) Co., Ltd. Fanze T&M (Jiashan) Co., Ltd. Contact Us
PREV：No previous article NEXT：Wheel Speed Sensor Wiring Harness Injection Mold
  • Product Details
P1
Product Dimensions
55 x 60 x 22 mm
P2
Product Material
TPO
P3
Mold Material
1.2738HH
P4
Testing Methods
CMM
P5
Mold Lifespan
500,000 shots
P6
Warranty Period
12 months
Tooling Overview

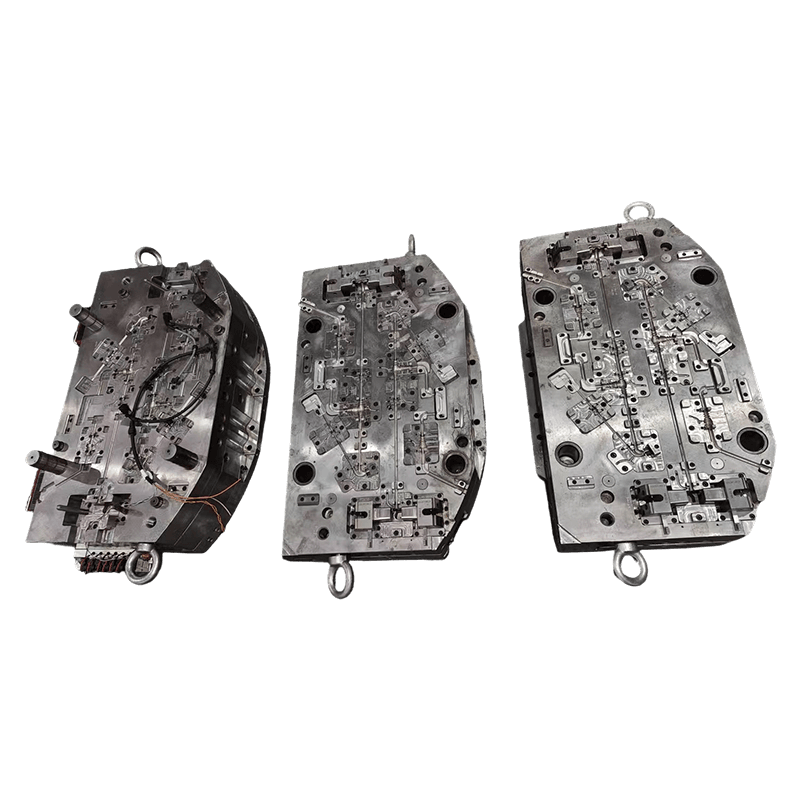

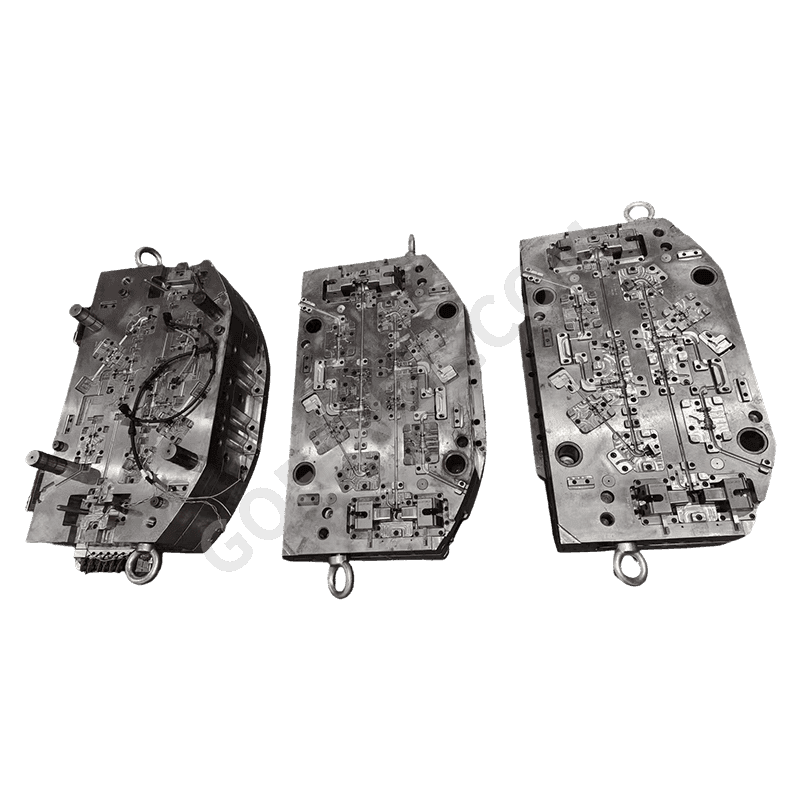

This injection mold is engineered for the volume production of automotive ABS wiring harness housings molded in TPO. The tool is built from 1.2738HH pre-hardened steel and inspected by CMM to hold stable cavity dimensions across the compact 55 x 60 x 22 mm part envelope. Cooling circuits and gating are configured around TPO flow characteristics to deliver flexible, impact-resistant parts suitable for under-hood and chassis routing. Rated for 500,000 shots with a 12-month warranty, the mold is fully customizable to customer drawings and is intended for Tier suppliers and harness manufacturers sourcing dedicated B2B tooling.
Discuss your project
Core Advantages
A
Pre-Hardened Steel Consistency
1.2738HH delivers uniform hardness through large cavity blocks, maintaining dimensional stability across long production runs.
B
TPO-Tuned Gating
Gate and runner design is matched to TPO viscosity, reducing warpage while preserving flexible clip and snap features.
C
CMM-Documented Quality
Cavity dimensions are CMM verified during build and first article inspection, ensuring repeatable connector fit across batches.
F1
Venting engineered for TPO to limit gas marks and short shots on thin housing walls.
F2
Balanced ejector layout prevents deformation of the compact harness housing during release.
F3
Cavity geometry preserves cable channel and clip anchor positions for vehicle routing.
F4
Tooling adaptable to varied connector pin counts and housing profiles from customer 3D data.
Application Scenarios
ABS wiring harness housings for passenger cars and SUVs
Under-hood and chassis sensor connector bodies
New energy vehicle brake system harness components
Replacement tooling for Tier 1 harness and sensor suppliers
FAQs and Solutions
Q1: How does the mold account for TPO shrinkage variation? +
Shrinkage compensation is applied during cavity machining based on the specific TPO grade supplied. Mold flow analysis is run before steel cutting, and first article parts are CMM checked to confirm dimensional targets before production release.
Q2: Can the harness housing design be modified for different connector standards? +
Yes. The tool is developed from customer 2D drawings or 3D models, allowing connector profiles, clip locations, and cable channel geometry to be revised for each platform while retaining the overall mold base architecture where feasible.
Q3: What is the production timeline and commercial arrangement? +
Mold manufacturing takes approximately 70 days, with product delivery about 30 days after tool approval. Terms are FOB Shanghai with T/T payment, and pricing is provided on request based on final specification.
Shipping Terms FOB Shanghai
Payment Terms T/T
Customization Fully available
Product Dimensions 55x60x22
Product Material TPO
Product Price US$10.0
Product Delivery Time 30 days
Mold Price US$100,000
Mold Manufacturing Time 70 days
Shipping Terms FOB ShangHai
Payment Terms T/T
Mold Material 1.2738HH
Testing Methods CMM
Mold Lifespan 500k
Warranty Period 12 month
