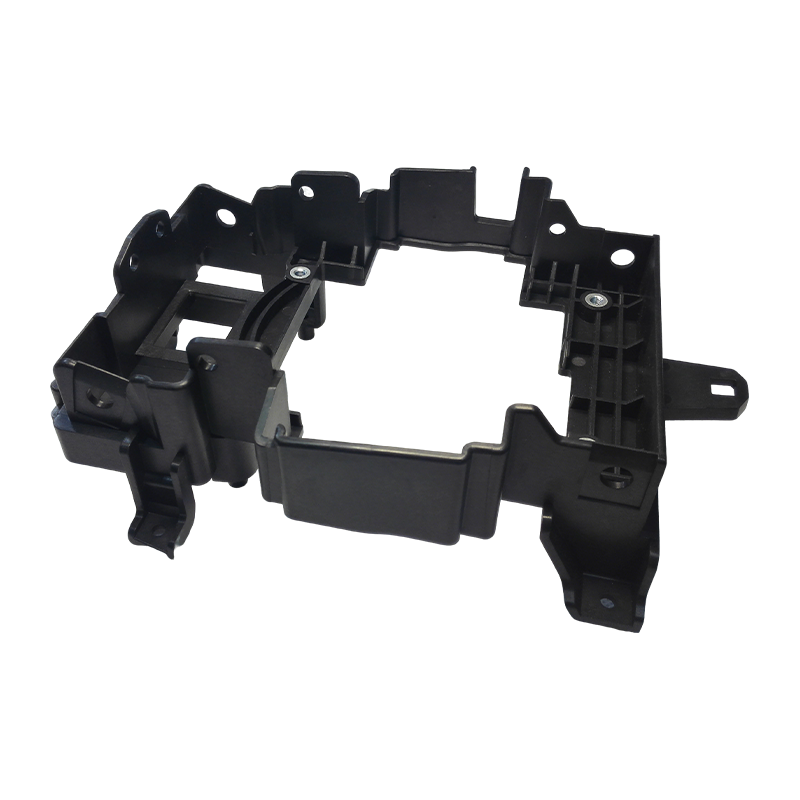

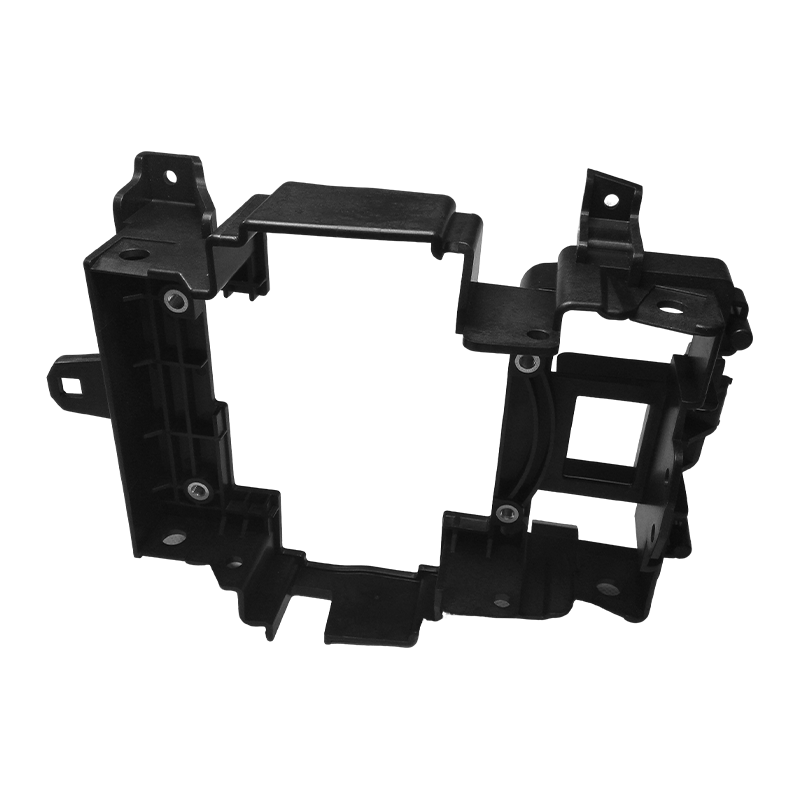

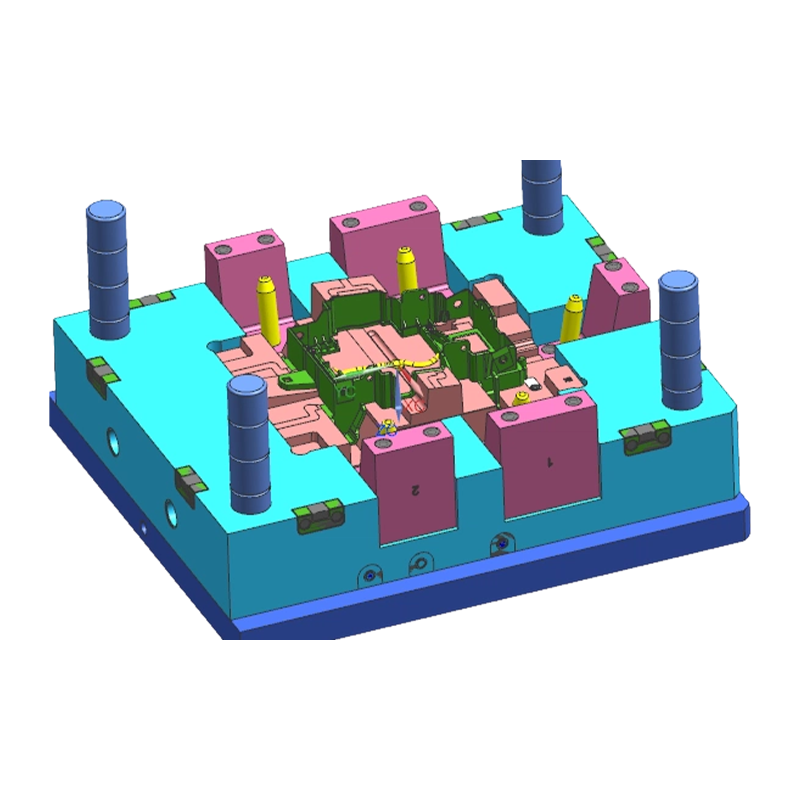

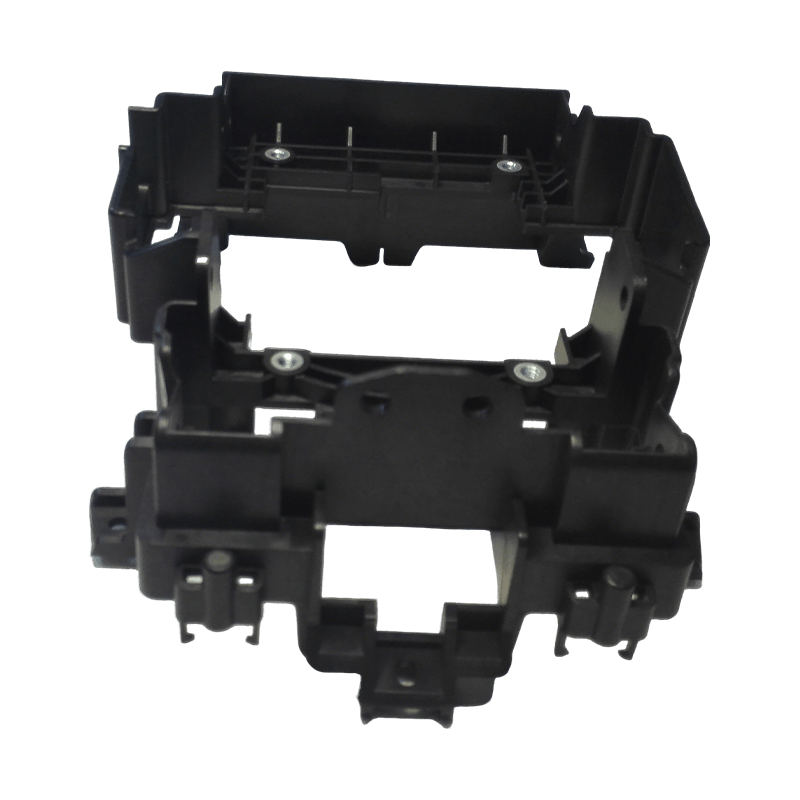

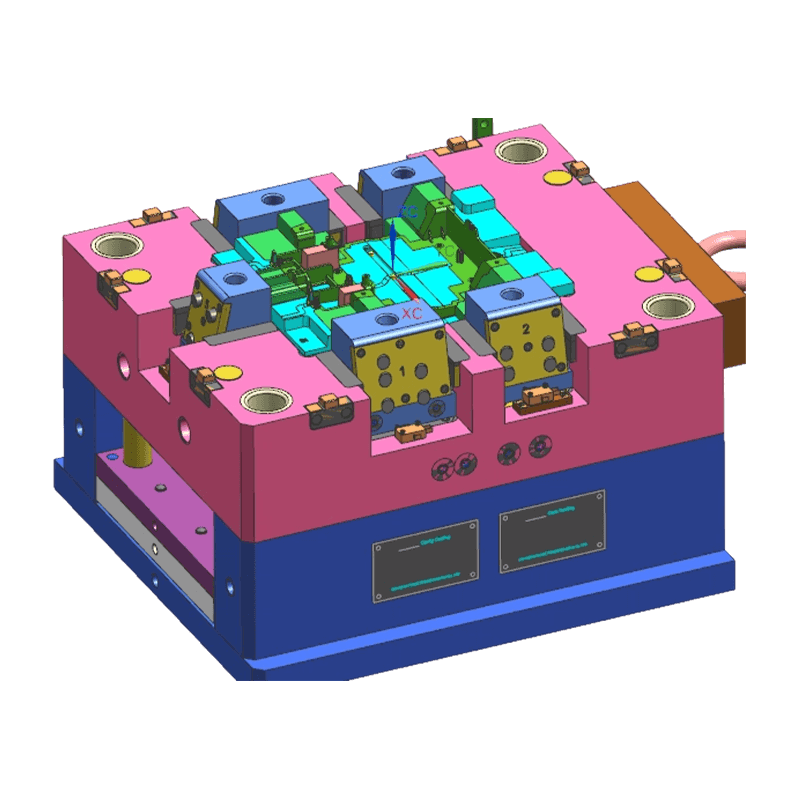

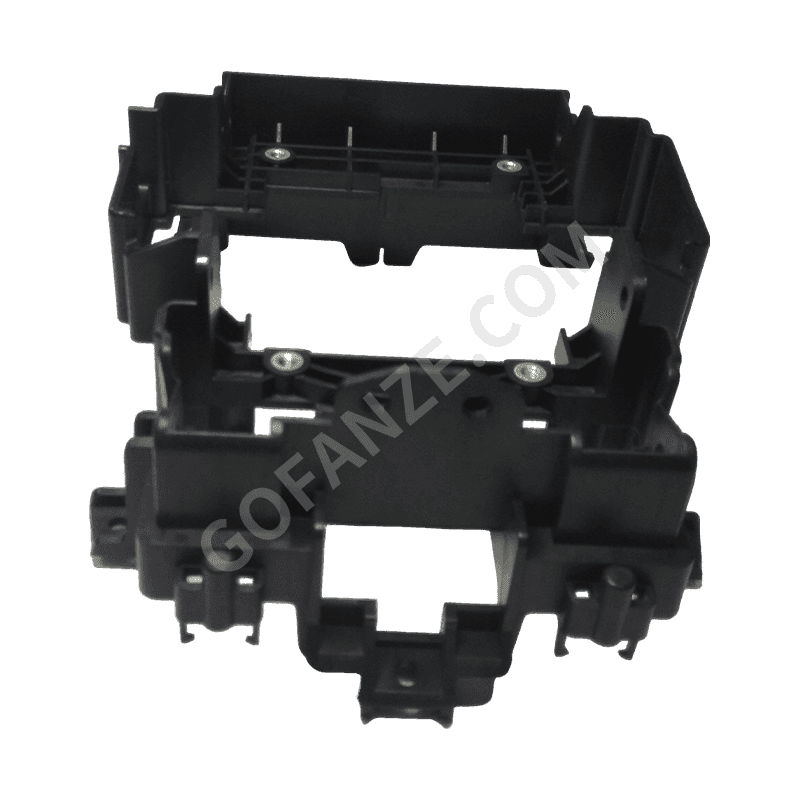

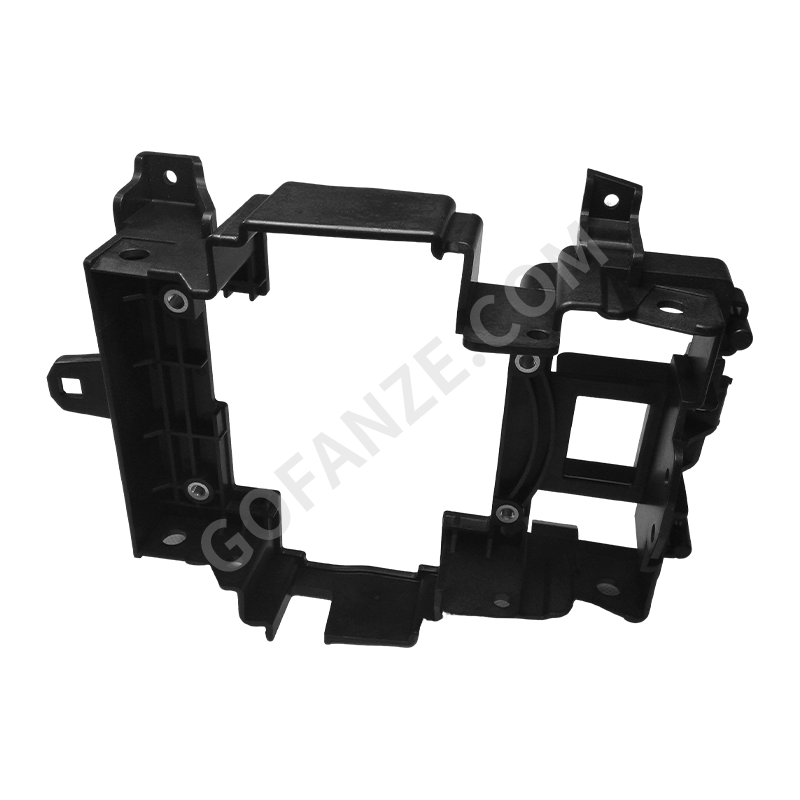

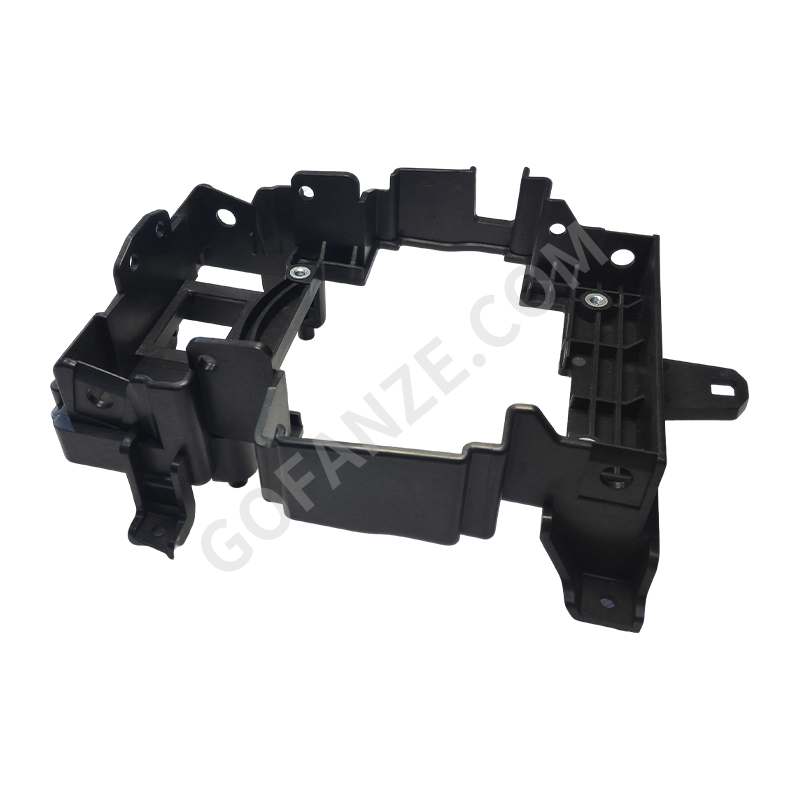

Gear Shift Bracket Injection Mold

Core Advantages

• Structural Integrity Assurance: Optimizing the mold's gating system and cooling circuits based on the load-bearing characteristics of the bracket to effectively reduce residual stress in the molded part, preventing warpage after molding, and ensuring structural stability after assembly.
• Fit Precision Control: Utilizing slowwire EDM and precision grinding processes for critical mold areas to strictly control dimensional tolerances of mounting holes, snapfits, and positioning pillars, ensuring precise fit between the bracket and the shifting mechanism or decorative panels.
• Standardized Export Specifications: Mold design and manufacturing follow international standards such as DIN and HASCO. Key components use standard parts, facilitating easy maintenance and spare part replacement for overseas clients, reducing lifecycle maintenance costs.
• Component-Level Delivery Capability: Providing injection production and postprocessing services, supporting hotmelt embedding of metal inserts, plastic welding, and final assembly, meeting customers' one-stop procurement needs.

Product Features

• Complex Geometry Molding: The mold is capable of handling complex structures such as undercuts and densely distributed reinforcing ribs. The demolding mechanism is reliably designed to ensure smooth molding without damaging the product's appearance.
• Material Property Adaptation: Suitable for engineering plastics such as Glass Fiber Reinforced PA66, POM, and PC/ABS. The molded parts possess wear resistance, fatigue resistance, and high-temperature resistance, suitable for the automotive cabin environment.
• Surface Treatment Specifications: The product surface can be treated as glossy or textured according to requirements, meeting interior aesthetic standards while ensuring color and texture consistency with other interior components.
• Mass Production Stability: The mold offers a stable production cycle with a wide processing window, suitable for large-volume continuous production. Injection cycle times and yield rates have been verified through testing.

Application Scenarios

• Gearbox Shifting Mechanism: Used to produce manual/automatic gear shift handle base brackets and shift lever guide brackets.
• Steering Column System: Applicable to molds for steering column shroud brackets and combination switch mounting brackets.
• Center Console Assembly: Used for the injection production of center console internal skeletons and functional part fixing brackets.
• Automotive Parts Supply: Providing OEM-standard molds and injection components for vehicle manufacturers and Tier 1 suppliers.

FAQs and Solutions

Q1: Bracket-type injection parts are prone to warping, leading to excessive assembly gaps. How is this resolved?
Solution: Warpage is mainly caused by uneven cooling or molecular orientation stress. During the mold design phase, we use mold flow analysis software to simulate packing and cooling processes, designing cooling circuits differentially. We apply special cooling measures at the junction of thick and thin walls and incorporate deformation compensation design (antideformation machining) to effectively control the flatness and straightness after molding.

Q2: How to avoid loosening or positional deviation of metal inserts in the bracket after injection?
Solution: The mold employs precision insert positioning mechanisms and reserves reasonable dimensions (encompassing dimensions) in the design. In the injection process, we optimize injection pressure and speed to prevent the melt from impacting and displacing the inserts. Additionally, metal inserts are preheated to enhance bonding with the plastic substrate, ensuring the inserts are secure and reliable.

Q3: How is compliance with local technical specifications ensured for molds exported to Europe?
Solution: With over 15 years of mold export experience, our design drawings and BOMs are fully standardized. Mold steel grades, heat treatment hardness indicators, and accessory specifications all comply with DIN standards. We also provide detailed mold maintenance manuals and spare parts lists, ensuring customers can perform standardized maintenance operations locally.

Q: 10. If I want to develop a product containing injection-molded parts, what kind of assistance can you provide?

We can provide full support ranging from product development review and structural design, to mold manufacturing, volume injection molding, printing, and assembly. We can collaborate with customers in the early stages of product development to optimize designs for cost reduction and improved manufacturability.

Q: 9.What is the company's quality policy?

The company always adheres to the quality policy of "Precision, High Efficiency, Forging Quality," and is committed to providing customers with high-quality services through advanced technology and an excellent management team.

Q: 8.What are your competitive advantages compared to other mold enterprises?

Our advantages lie in the combination of Singapore's precision mold technology, advanced production equipment (extensive imported CNC and injection molding machines), a comprehensive one-stop production process (from design to assembly), and a strict quality management system certified by IATF 16949.

Q: 7.Who are your main customers, and to which regions are the products exported?

We have established good cooperative relations with well-known companies, including UK's Land Rover and Triumph Motorcycles, domestic SAIC, Changan, ABB charging stations, and Japan's Tiger Corporation. Our products are exported to countries such as Japan, Europe, and the United States.

Q: 5. What quality system certifications has the company obtained?

The company has passed the IATF 16949 quality system certification, ensuring our product quality in the automotive and industrial sectors meets international standards.

Q: 6.In which fields are the company's products mainly applied?

Our products are widely used, mainly in areas such as automotive interiors, new energy charging piles, and household appliances.

Q: 4.What main production equipment does the company have?

We possess several imported precision machining facilities, including well-known foreign brand precision machines such as CNC machine tools, EDM spark machines, and slow-moving wire cutting machines. We also have a number of high-performance injection molding production equipment from Japan and Germany.

Q: 3.Where is the company currently located, and what is the scale of the factory?

The company relocated to Guigu Park, Jiashan County, Zhejiang Province in 2016. Currently, the plant covers an area of 7,000 square meters, with a usable area of 14,000 square meters, and employs about 100 people.
