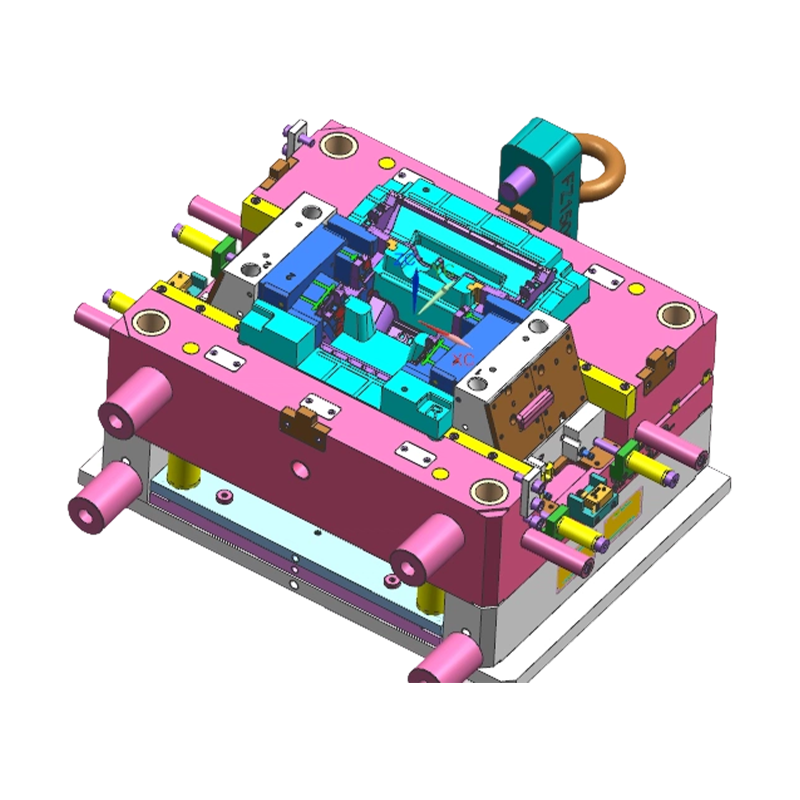

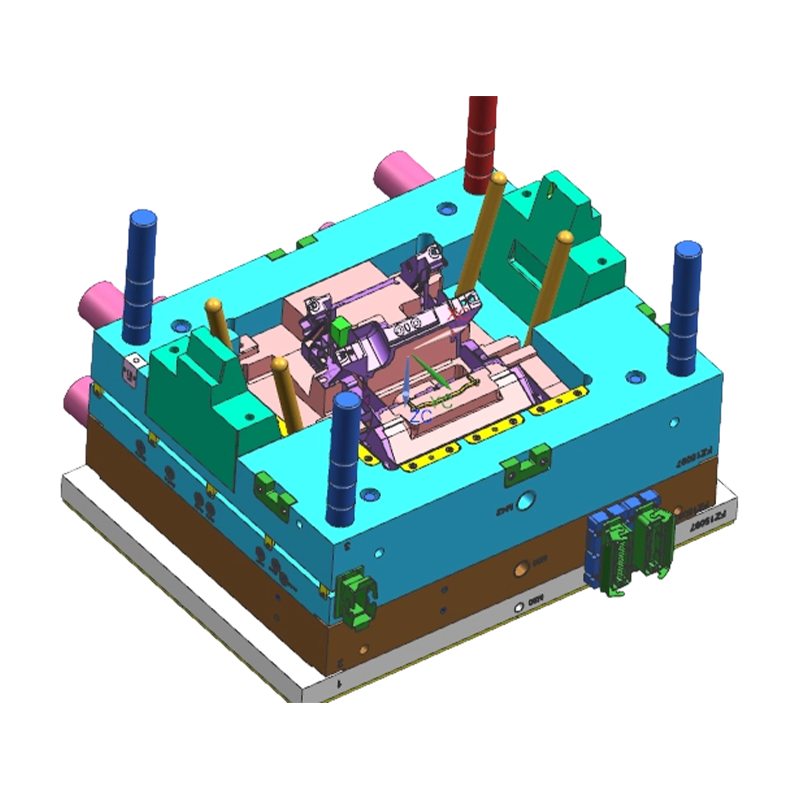

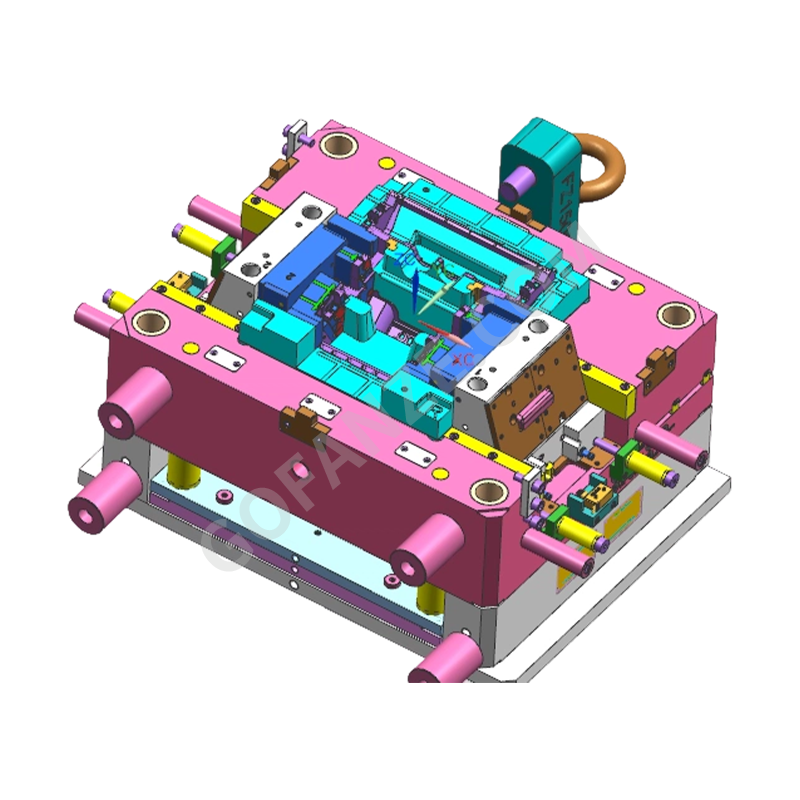

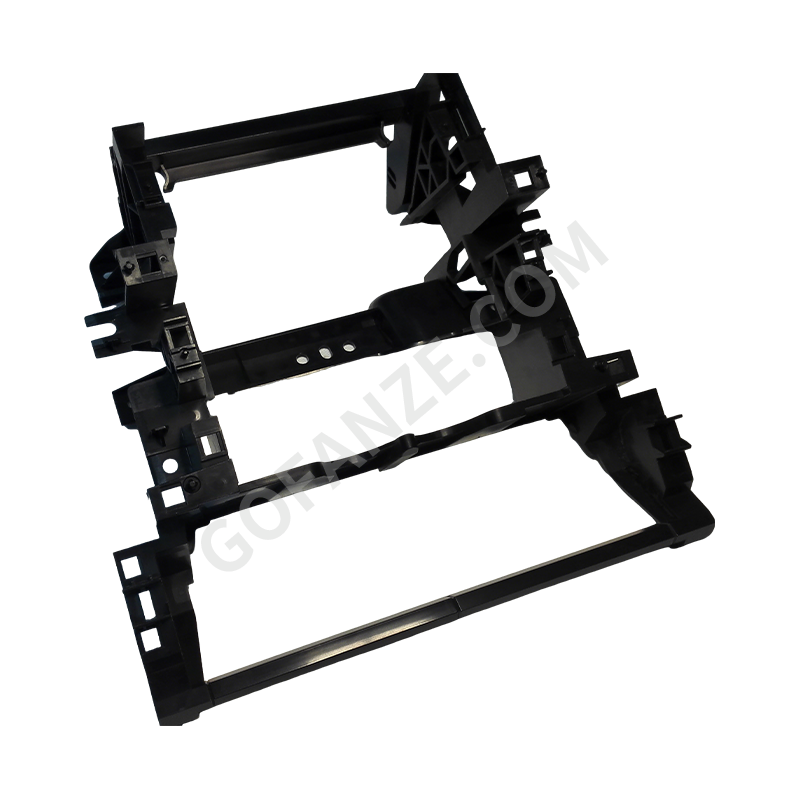

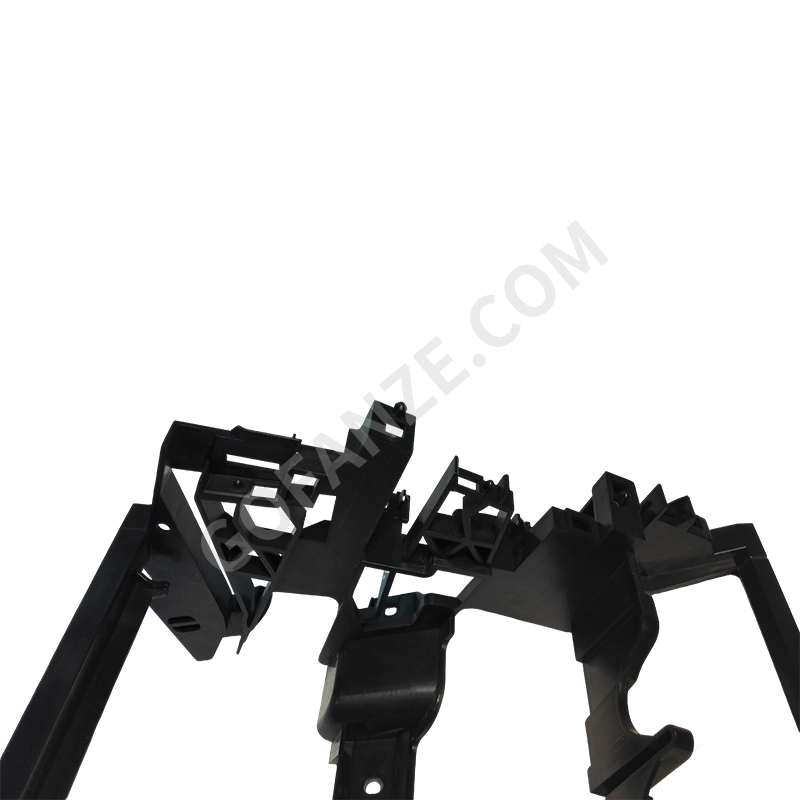

Center Stack Carrier Injection Mold

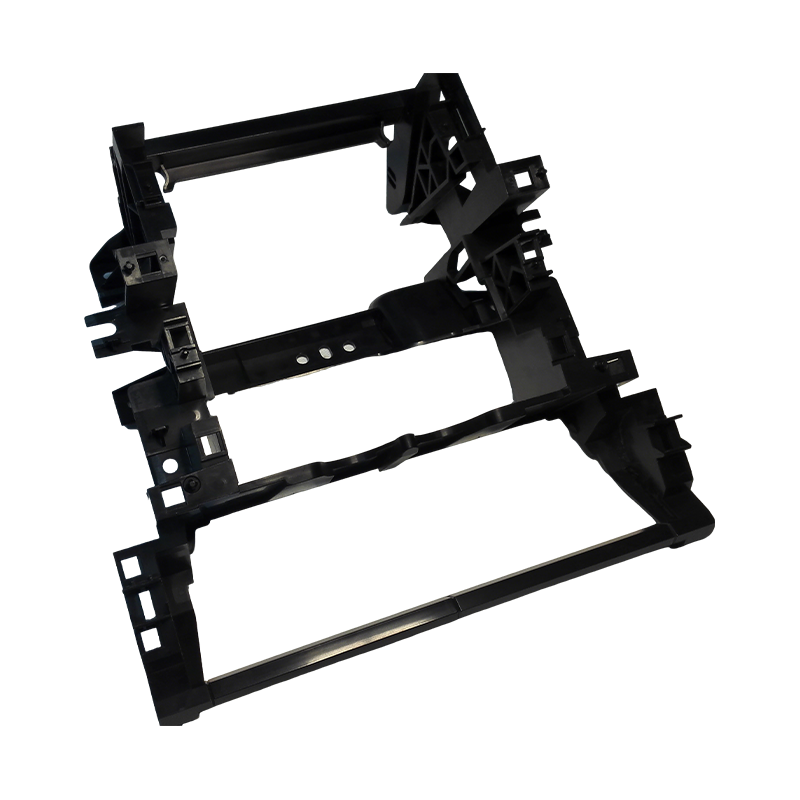

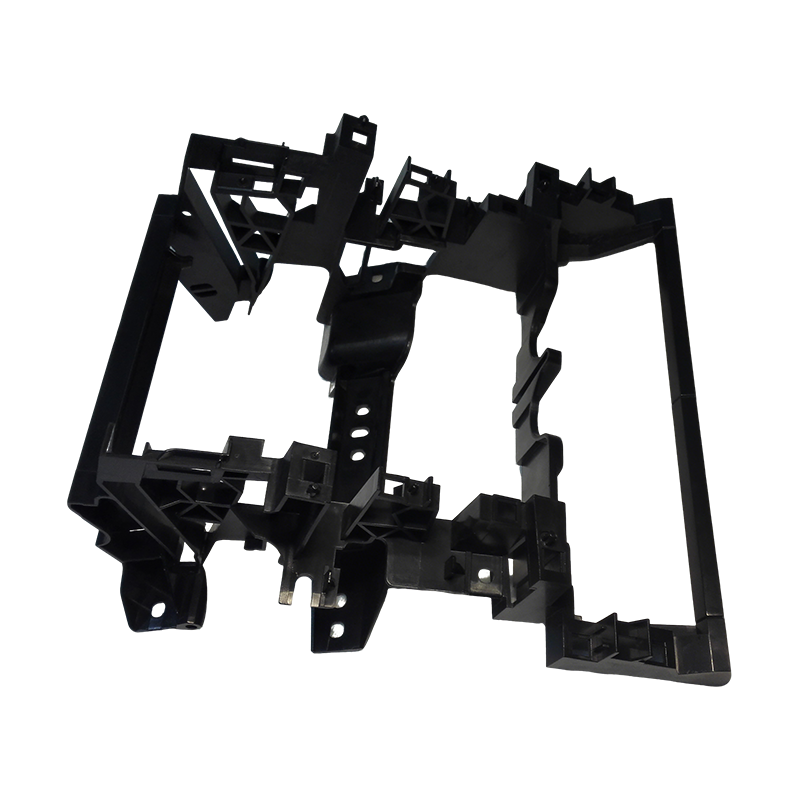

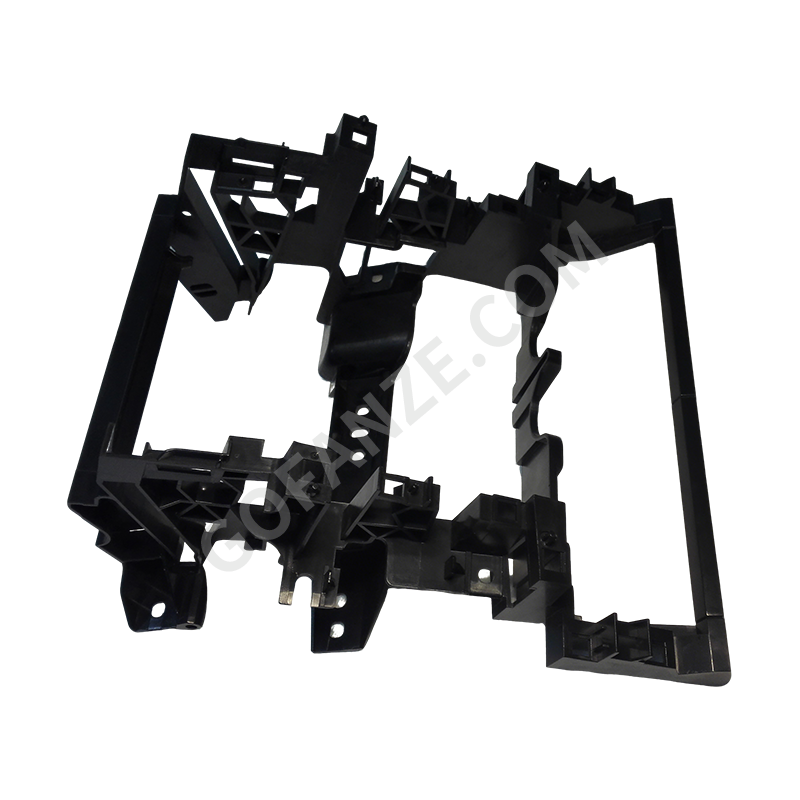

The Center Console Bracket is a critical structural and aesthetic component in automotive interior systems, typically manufactured from engineering plastics via injection molding. It serves as the mounting foundation for displays, climate control units, storage compartments, and various function buttons. This component requires high-dimensional stability to align with body mounting points and must meet interior surface quality standards. We specialize in mold manufacturing and the production of automotive interior plastic parts. Based on customer 3D models or drawings, we develop injection molds conforming to international standards, ensuring assembly precision, snapfit durability, and faithful replication of surface textures.

Fanze T&M (Jiashan) Co., Ltd. Fanze T&M (Jiashan) Co., Ltd. Contact Us
PREV：Center Console Trim Panels Injection Mold NEXT：Steering Wheel Trim Cover Injection Mold
  • Product Details
▲
Core Advantages
01
Mold Design and Manufacturing Experience
Leveraging over 15 years of experience exporting plastic tools and components to European and Asian markets, we can manage complex automotive interior mold structures including lifters, sliders, and sequential valve gate hot runner systems.
02
Material and Process Adaptation
Familiar with automotive performance requirements, we select materials such as PP+EPDM, ABS, PC/ABS, or ASA based on functional zones and optimize injection parameters to minimize internal stress.
03
Backend Process Integration
Beyond injection molding, we provide plastic welding and assembly services, enabling preassembly of metal inserts, wiring harness clips, or other plastic subcomponents into the bracket.
⬩
Product Characteristics
three core technical pillars
I
Complex Geometry Molding
Mold design integrates multiple snapfits, mounting posts, ribs, and guide channels, reducing secondary operations.
II
Surface Finish Adaptability
Mold cavities can be polished or textured to different grades, ensuring the plastic part meets the visual and tactile requirements of the interior.
III
Dimensional Precision Control
Mold flow analysis optimizes gate locations and cooling systems to control shrinkage, ensuring consistent fit gaps with surrounding components.
⏺
Material Performance Diversity
Weather Resistance
Outer or ClassA surface parts can utilize ASA or PC/ABS for UV resistance.
Impact Resistance
Internal structural parts can use toughened PP or ABS to meet lowtemperature impact testing requirements.
▸ Applications
Passenger Vehicle Interiors Commercial Vehicle Cabs Aftermarket Modifications
Used in instrument panel assemblies for center stacks, navigation brackets, and climate control panel bases. Applied in functional consoles and storage brackets for trucks and construction machinery. Utilized as replacement panels or mounting brackets in multimedia upgrade kits.
◆
Common Issues and Solutions
Squeak and Rattle
Relative movement between plastic and metal or other plastics can generate noise. We address this by incorporating crush ribs, Reserved flocking areas in the mold design, or selecting material combinations with controlled coefficients of friction.
Sink Marks
Uneven wall thickness can cause visible sink marks. Mold flow analysis optimizes wall design, and cooling or packing parameters are adjusted during molding to minimize their appearance.
SnapFit Breakage
Snaps may break during assembly or disassembly. We optimize the root radius design, select materials with appropriate toughness, and ensure filling is complete without weak weld lines in critical areas.
Product Dimensions 344*354*230
Product Material PC+ABS
Product Price US$3.5
Product Delivery Time 30 days
Mold Price US$50,000
Mold Manufacturing Time 60 days
Shipping Terms FOB Shang Hai
Payment Terms T/T
Mold Material 1.2711H
Testing Methods CMM
Mold Lifespan 500k
Warranty Period 12 month
