Wholesale Passenger Airbag (PAB) Deployment Cover injection mold

  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold
  • Passenger Airbag (PAB) Deployment Cover injection mold

Passenger Airbag (PAB) Deployment Cover injection mold

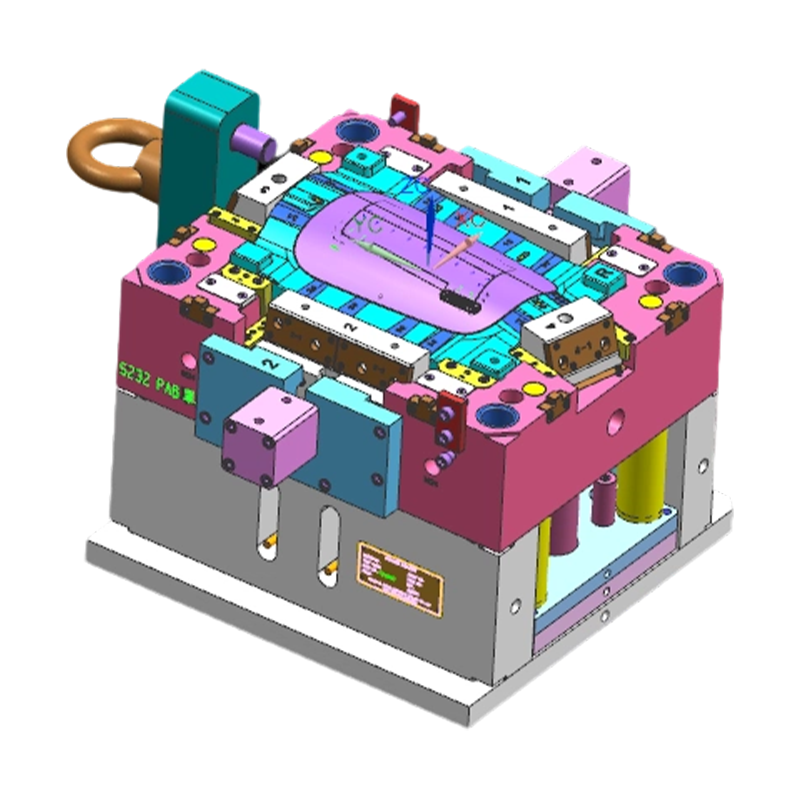

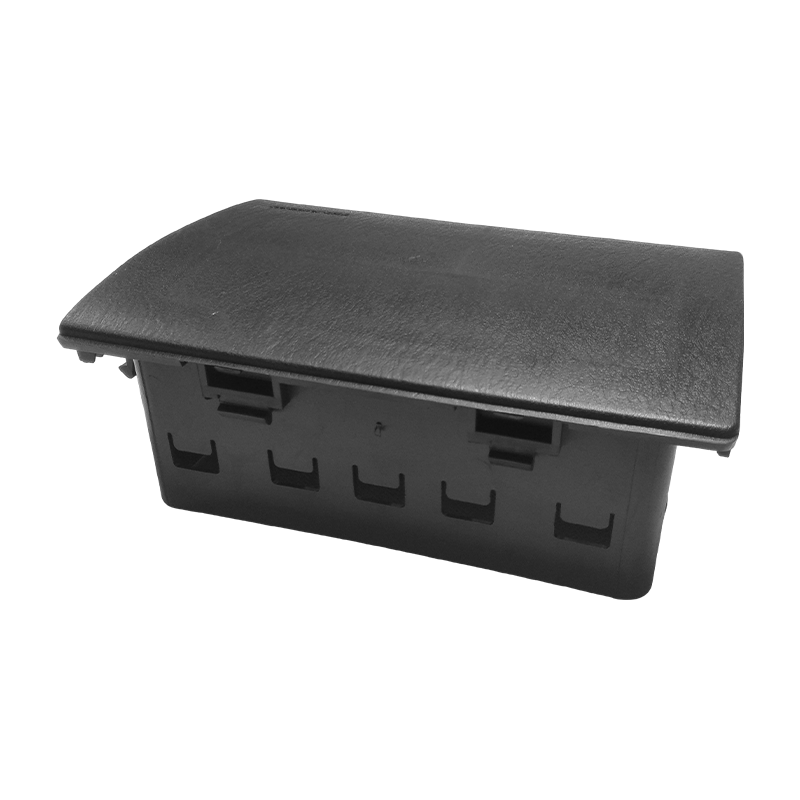

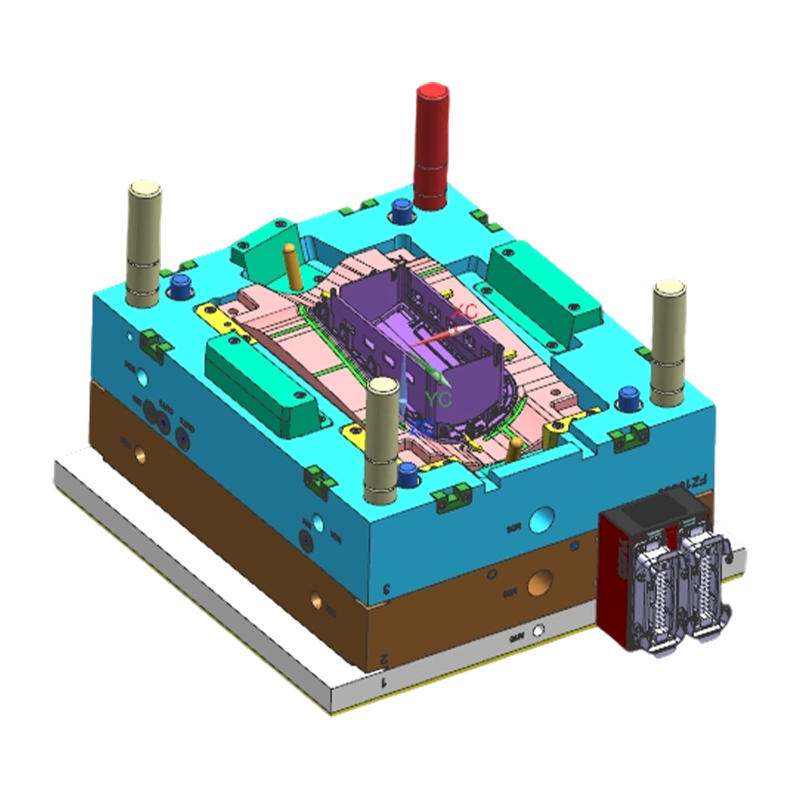

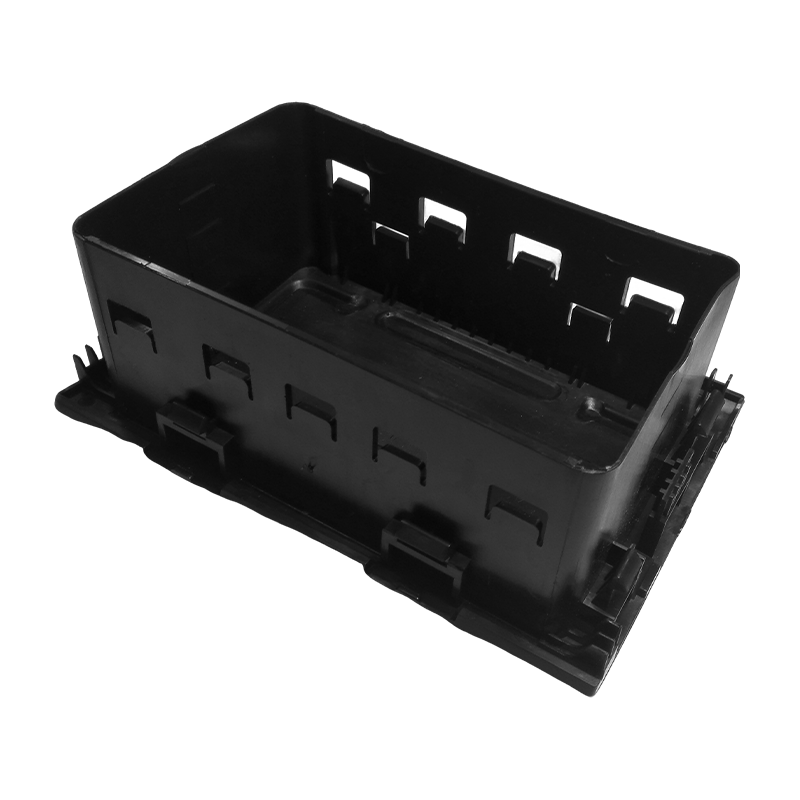

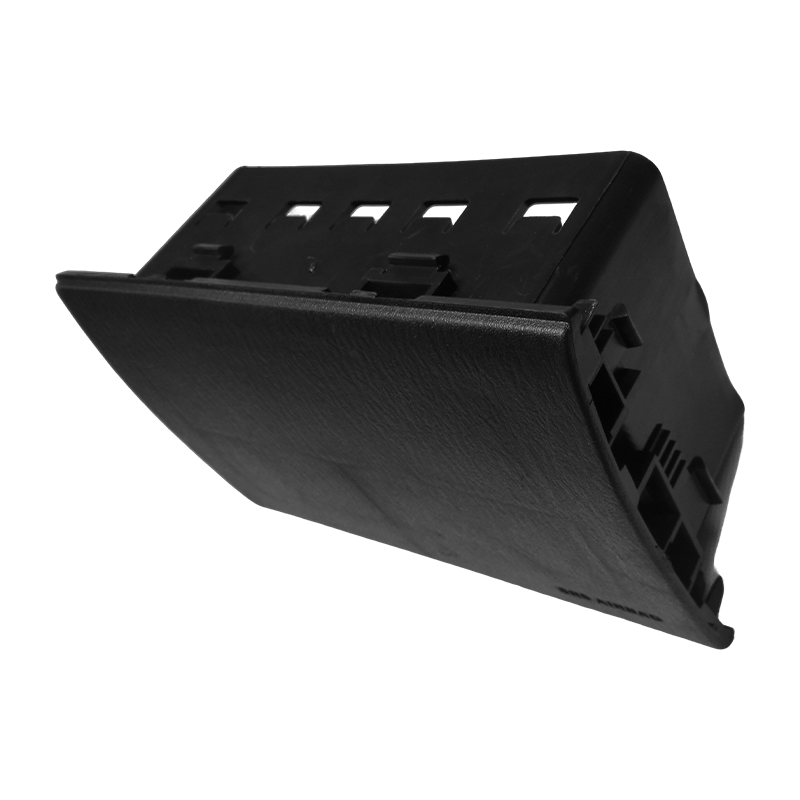

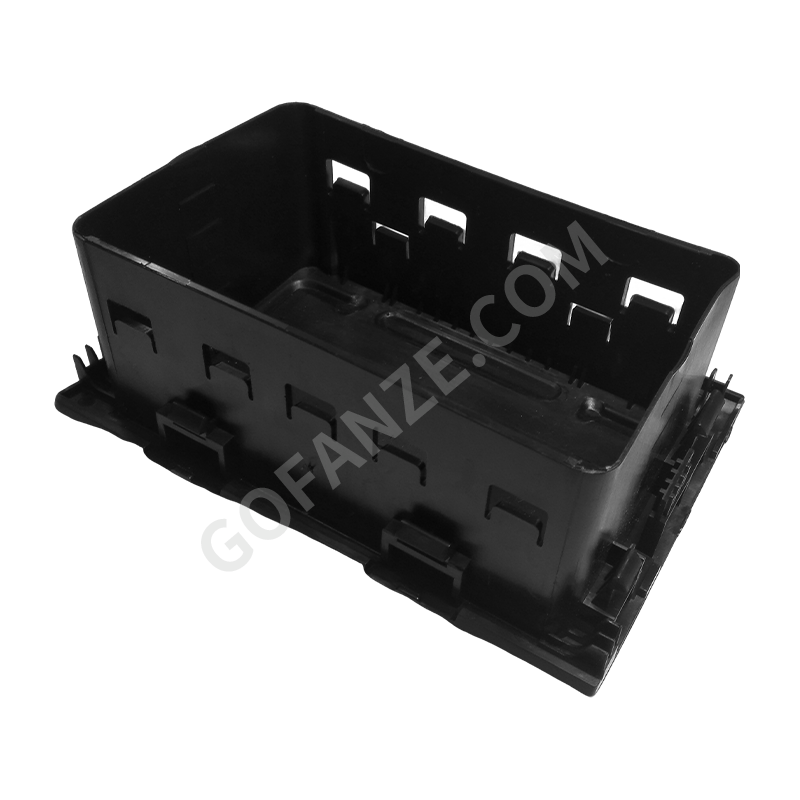

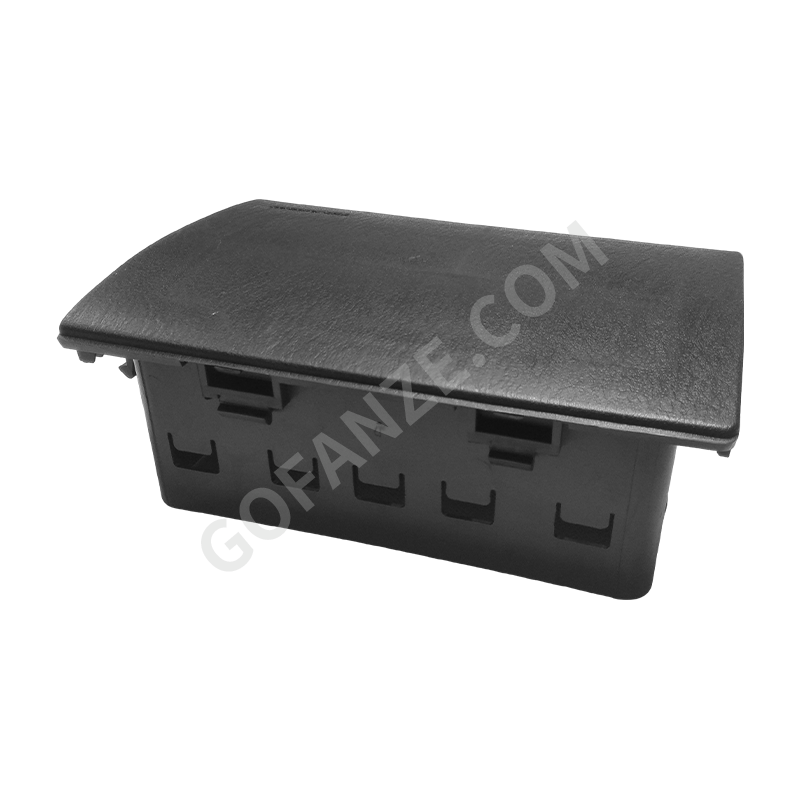

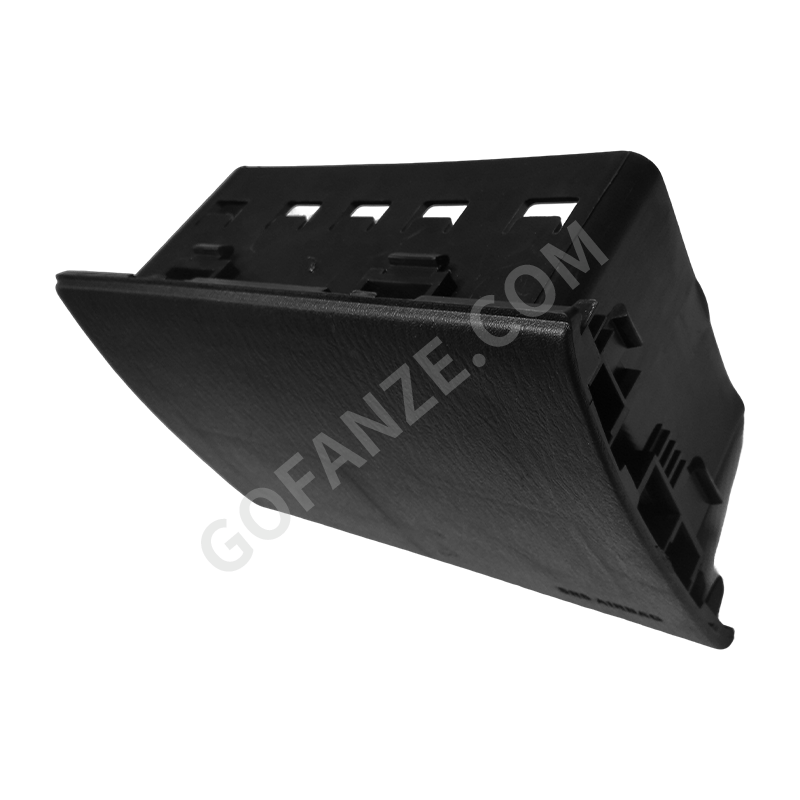

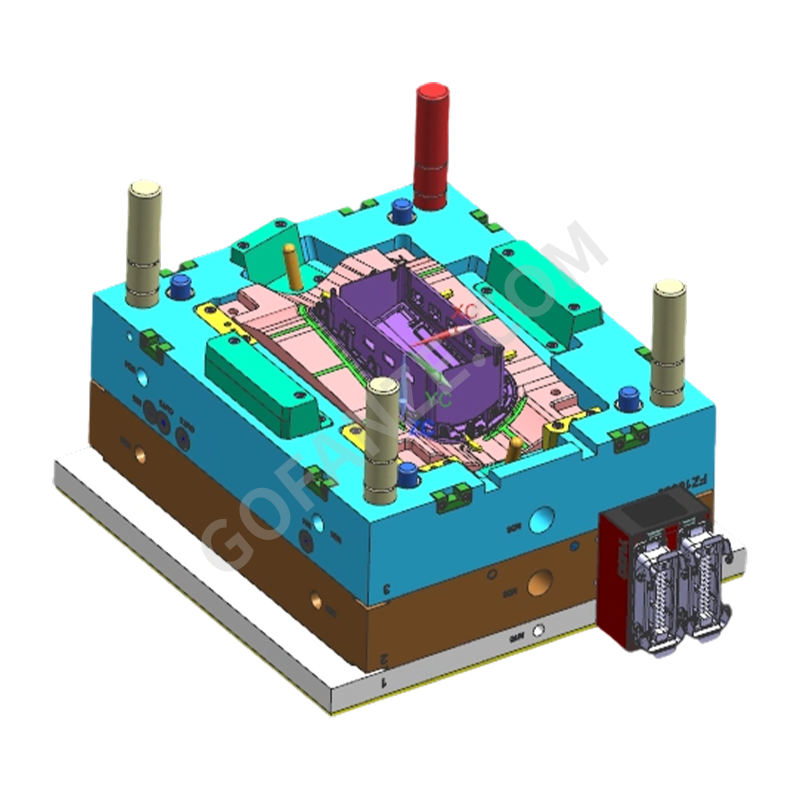

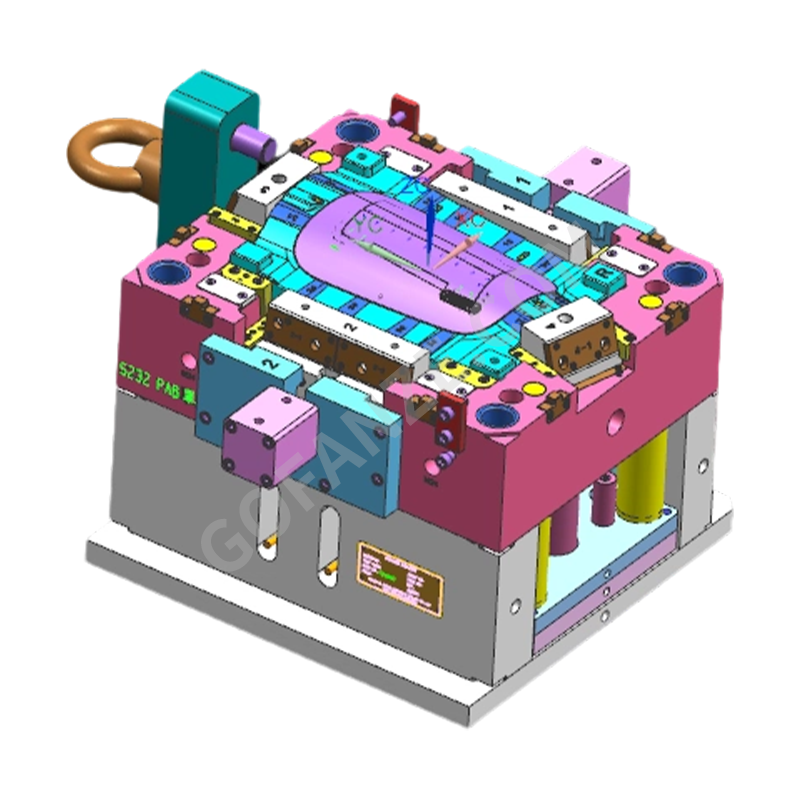

This product is specifically designed for the passenger-side airbag system and falls under the category of high-precision injection molds. The mold structure is engineered to integrate with the instrument panel assembly process, often utilizing reverse mold structures or specific slider mechanisms. This ensures the cover opens instantly along the preset tear line during airbag deployment while maintaining flushness and gap consistency with the instrument panel surface during daily driving. The mold is constructed using high-polish pre-hardened steel, processed via precision CNC machining and mirror polishing to meet the strict aesthetic requirements of automotive interior components. As a critical cover for the passive safety system, its manufacturing precision directly impacts the operational reliability of the airbag module and the overall visual quality of the vehicle interior. We support customization based on customer-provided 2D drawings or 3D models, adhering to international mold design standards.

Fanze T&M (Jiashan) Co., Ltd. Fanze T&M (Jiashan) Co., Ltd. Contact Us
PREV：Automotive Plastic Airbag Mounting & Support Bracket injection mold NEXT：Driver Airbag Housing / Cover injection mold
  • Product Details
Why choose us
Core Advantages
I
Precision Molding Technology
Optimized gating systems and cooling channel designs address the challenges of thin walls and sensitivity to flow marks, ensuring finished parts are free of weld lines and possess high surface finish quality, meeting Class A surface standards.
II
Customized Design Capability
We provide fullprocess customization from mold flow analysis to structural design, tailored to specific vehicle platforms and dashboard structures, including variations for lefthand and righthand drive configurations.
III
LongLife Mold Manufacturing
Utilizing premium mold steel and standardized heat treatment processes, the molds are built to international standards (DIN/HASCO), offering a long service life suitable for mass production with low maintenance costs.
IV
OneStop Delivery Service
We offer a complete process chain from mold design and manufacturing to injection production, ultrasonic welding, and component assembly, simplifying supply chain management for our clients.
Engineering data
Product Features
F1
Structural Complexity
Features complex ejection mechanisms or angled lifters to solve demolding challenges of undercuts on the inner side of the cover, while maintaining precise thickness control of the airbag tear line.
F3
Material Adaptability
Suitable for processing TPO, PP, ABS, and other common automotive interior materials, providing excellent weather resistance and aging performance.
F2
Surface Treatment
Mold cavity surfaces support grain etching, texturing, or highgloss polishing. The injected parts can match the overall texture of the instrument panel for seamless visual integration.
F4
Testing Standards
Products undergo strict dimensional tolerance inspection, falling ball impact tests, and highlow temperature environmental testing to ensure structural stability under extreme conditions.
◆◆
Application Scenarios
Passenger Vehicle Manufacturing
Widely used in the rightside passenger airbag area of sedans, SUVs, and MPVs.
New Energy Vehicles (NEV)
Adapts to the minimalist interior design trends of NEVs, meeting requirements for lightweight and highstrength plastic components.
Automotive Parts Supply
Provides supporting molds and injection components for Tier 1 automotive suppliers for the assembly of airbag modules.
?
FAQs and Solutions
Q1: How do you address visible weld lines or flow marks on the passenger airbag cover surface?
Weld lines affect aesthetics and can cause stress concentration. Our engineers utilize mold flow analysis software to optimize gate locations and adjust injection speed and pressure parameters. We also implement cold slug well designs to effectively eliminate weld lines, ensuring a smooth and uniform surface finish.
Q2: How is the uniformity of the tear line thickness ensured in the mold?
The tear line (weak line) is the technical core of the airbag cover. During mold manufacturing, we use highprecision Electrical Discharge Machining (EDM) and strictly control the machining depth tolerance to micron levels. We also perform 100% inspection using Coordinate Measuring Machines (CMM) to ensure the tear line ruptures accurately upon impact while maintaining structural integrity during normal use.
Q3: How do you ensure the molds exported to Europe meet local maintenance standards?
With over 15 years of export experience, our mold designs fully comply with DIN standards. We utilize standard components (such as ejector pins, springs, slider components) compatible with DME or HASCO standards, facilitating easy local replacement and maintenance for customers, thereby reducing postsale maintenance complexity.
Product Dimensions 250*283*85
Product Material TPU
Product Price US$3.0
Product Delivery Time 30 days
Mold Price US$45,000
Mold Manufacturing Time 55 days
Shipping Terms FOB ShangHai
Payment Terms T/T
Mold Material NAK80; 1.2711H
Testing Methods CMM
Mold Lifespan 500k
Warranty Period 12 month
